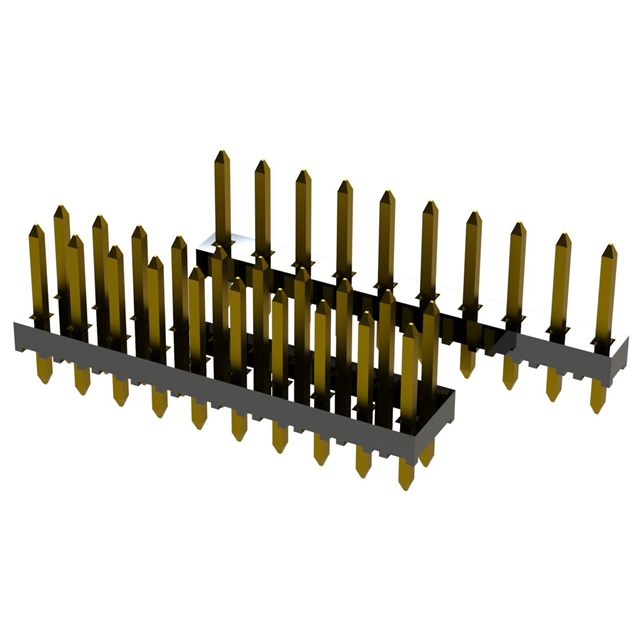

ULTSHC-136-S-03-105-F-LF

Active

Major League Electronics

.100 HEADER

Search across all available documentation for this part.

Active

Major League Electronics

.100 HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	ULTSHC-136-S-03-105-F-LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

.100 HEADER

Part	Overall Contact Length	Overall Contact Length	Shrouding	Current Rating (Amps)	Contact Finish - Mating	Contact Shape	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type	Insulation Material	Mounting Type	Termination	Number of Rows	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Connector Type	Pitch - Mating	Pitch - Mating
Major League Electronics ULTSHC-136-S-03-105-F-LF	8.51 mm	0.335 in	Unshrouded	3 A	Gold	Square	Flash	0.06 in	1.52 mm	4.32 mm	0.17 in	Push-Pull	Male Pin	Nylon 6T, Polyamide (PA6T)	Through Hole	Solder	1	36	Phosphor Bronze	-40 °C	105 ░C	Gold	Black	All	Flash	Header	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 36 position 0.100" (2.54mm)
