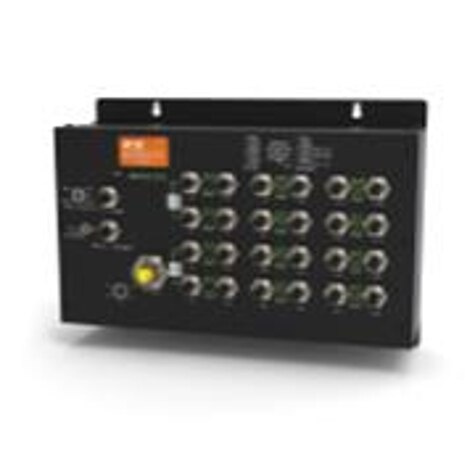

2352905-1
ObsoleteTE Connectivity AMP Connectors
UNMANAGED ETHERNET SWITCHES 24P MAN POE SWITCH 1GB 24V
2352905-1
ObsoleteTE Connectivity AMP Connectors
UNMANAGED ETHERNET SWITCHES 24P MAN POE SWITCH 1GB 24V
Description
General part information
2352905-1
UNMANAGED ETHERNET SWITCHES 24P MAN POE SWITCH 1GB 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | 2352905-1 |
|---|---|
| Configuration | Fixed |
| Connector Type | M12 |
| Copper Ports | 24 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP30 |
| Mounting Type | Chassis Mount |
| Number of Ports | 24 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| PoE Ports | 16 |
| Type | Switch - Managed |
| Voltage - Input (DC) Maximum | 55 VDC |
| Voltage - Input (DC) Minimum | 12 V |
