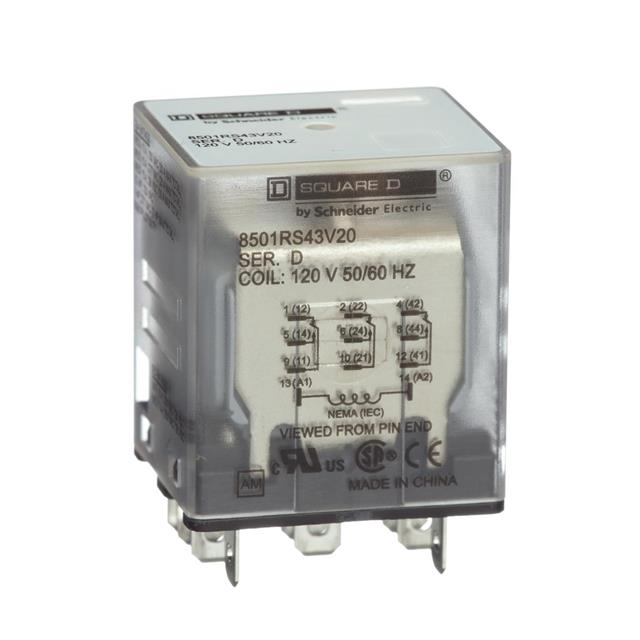

Specification	8501RS43V20

Coil Type	Non Latching
Coil Voltage	120 V
Contact Form	3 Form C, PDT
Contact Material	Gold (Au), Silver (Ag)
Contact Rating (Current)	15 A
Load - Max Switching (Apparent Power)	4500 VA
Load - Max Switching (Real Power)	450 W
Mounting Type	Socketable
Operate Time	20 ms
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-40 °C
Pin Count	3 pins
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage AC (Max)	300 VAC
Switching Voltage DC (Max)	30 VDC
Termination Style	Plug In

8501RS Series

Part	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Coil Voltage	Approval Agency	Coil Type	Operate Time	Mounting Type	Release Time	Termination Style	Contact Rating (Current)	Relay Type	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Load - Max Switching (Apparent Power)	Load - Max Switching (Real Power)	Pin Count
SCHNEIDER ELECTRIC 8501RS41P14V14	1 C Form SPDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC	CE CSA UL	Non Latching	20 ms	Socketable	20 ms	Plug In	15 A	General Purpose	30 VDC	300 VAC	4500 VA	450 W
SCHNEIDER ELECTRIC 8501RSD34V51	4 C Form PDT	-40 °C	55 °C	Silver Tin Oxide (AgSnO)	12 VAC		Non Latching	20 ms	Socketable	20 ms	Plug In	5 A	General Purpose	30 VDC	240 VAC	1200 VA	150 W	4
SCHNEIDER ELECTRIC 8501RSD14P14V53	4 C Form PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC		Non Latching	20 ms	Socketable	20 ms	Plug In	8 A	General Purpose	30 VDC	300 VAC	2400 VA	240 W	4
SCHNEIDER ELECTRIC 8501RSD44P14V53	4 C Form PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC	CE CSA UL	Non Latching	20 ms	Socketable	20 ms	Plug In	15 A	General Purpose	30 VDC	300 VAC	4500 VA	450 W	4
SCHNEIDER ELECTRIC 8501RSD43V53	3 Form C PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC		Non Latching	20 ms	Socketable	20 ms	Plug In	15 A	General Purpose	30 VDC	300 VAC	4500 VA	450 W	3 pins
SCHNEIDER ELECTRIC 8501RSD14V51	4 C Form PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	12 VAC		Non Latching	20 ms	Socketable	20 ms	Plug In	8 A	General Purpose	30 VDC	300 VAC	2400 VA	240 W	4
SCHNEIDER ELECTRIC 8501RSD41P14V53	1 C Form SPDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC	CE CSA UL	Non Latching	20 ms	Socketable	20 ms	Plug In	15 A	General Purpose	30 VDC	300 VAC	4500 VA	450 W
SCHNEIDER ELECTRIC 8501RS34V14	4 C Form PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC	CE CSA UL	Non Latching	20 ms	Socketable	20 ms	Plug In	5 A	General Purpose	30 VDC	240 VAC	1200 VA	150 W	4
SCHNEIDER ELECTRIC 8501RS44V14	4 C Form PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	24 VDC		Non Latching	20 ms	Socketable	20 ms	Plug In	15 A	General Purpose	30 VDC	300 VAC	4500 VA	450 W	4
SCHNEIDER ELECTRIC 8501RS44P14V20	4 C Form PDT	-40 °C	55 °C	Gold (Au) Silver (Ag)	120 V		Non Latching	20 ms	Socketable	20 ms	Plug In	15 A	General Purpose	30 VDC	300 VAC	4500 VA	450 W	4
