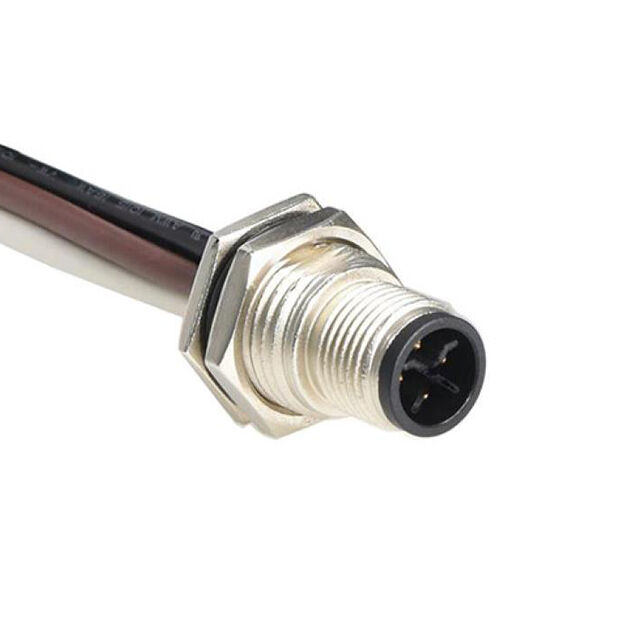

M12S-04PMMS-SF8C20
ActiveMcGill Microwave Systems
CIRC CBL 4POS PLUG TO WIRE 65.6'
M12S-04PMMS-SF8C20
ActiveMcGill Microwave Systems
CIRC CBL 4POS PLUG TO WIRE 65.6'
Description
General part information
M12S-04PMMS-SF8C20
Circular Cable Assembly Unshielded 65.6' (20.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | M12S-04PMMS-SF8C20 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | S |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Dust Tight, Waterproof; NMEA 2000 |
| Ingress Protection IP Rating | IP68 |
| Length | 65.6 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
