FOCM4ODMPMB12-10
ActivePasternack
IP68 -MPO/UPC MALE, TYPE B, IP68
FOCM4ODMPMB12-10
ActivePasternack
IP68 -MPO/UPC MALE, TYPE B, IP68
Description
General part information
FOCM4ODMPMB12-10

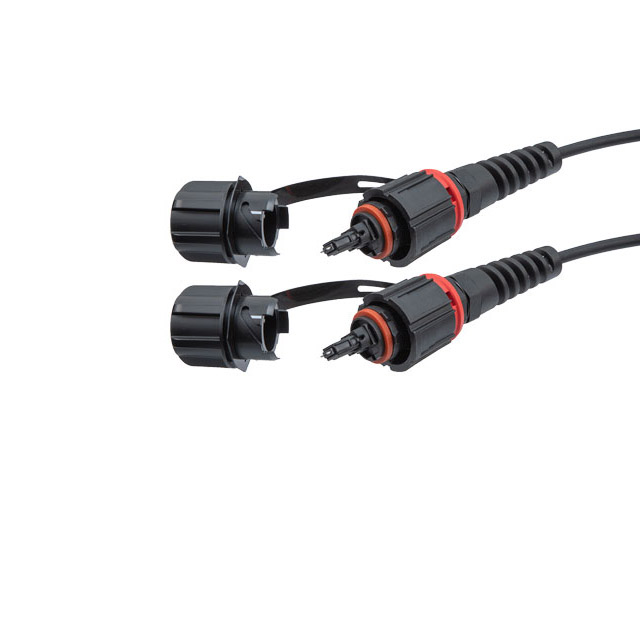

Cable Fiber Optic MPO/UPC To MPO/UPC 50/125 32.8' (10.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | FOCM4ODMPMB12-10 |
|---|---|
| 1st Connector | MPO/UPC |
| 2nd Connector | MPO/UPC |
| Cable Diameter | 0.2 " |
| Color - Cable | Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.5 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 32.8 ft |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Return Loss | 25 dB |
| Type | Multimode, OM3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
