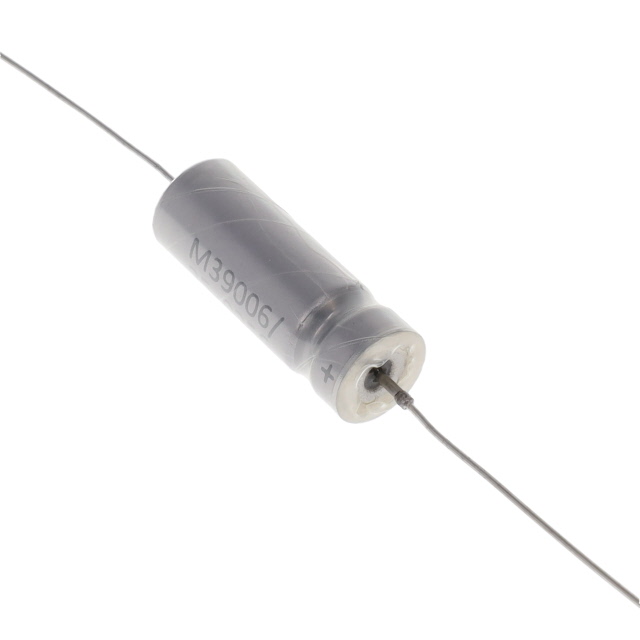

M39006/22-0219
ActiveVishay Dale
CAP TANT 56UF 20% 125V AXIAL
M39006/22-0219
ActiveVishay Dale
CAP TANT 56UF 20% 125V AXIAL
Description
General part information
M39006/22-0219
56 µF Hermetically Sealed Tantalum Capacitors 125 V Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | M39006/22-0219 |
|---|---|
| Capacitance | 56 µF |
| Failure Rate (Percent) | 0.1 % |
| Failure Rate Rating | P |
| Features | Wet Tantalum, High Reliability |
| Grade | Military |
| Manufacturer Size Code | T4 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Qualification | MIL-PRF-39006, 22 |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.126 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 125 VAC |
