53833-2
ActiveTE Connectivity AMP Connectors
TERMINAL,SOLIS SPR SPD 16-14 8 ROHS COMPLIANT: YES
53833-2
ActiveTE Connectivity AMP Connectors
TERMINAL,SOLIS SPR SPD 16-14 8 ROHS COMPLIANT: YES
Description
General part information
53833-2

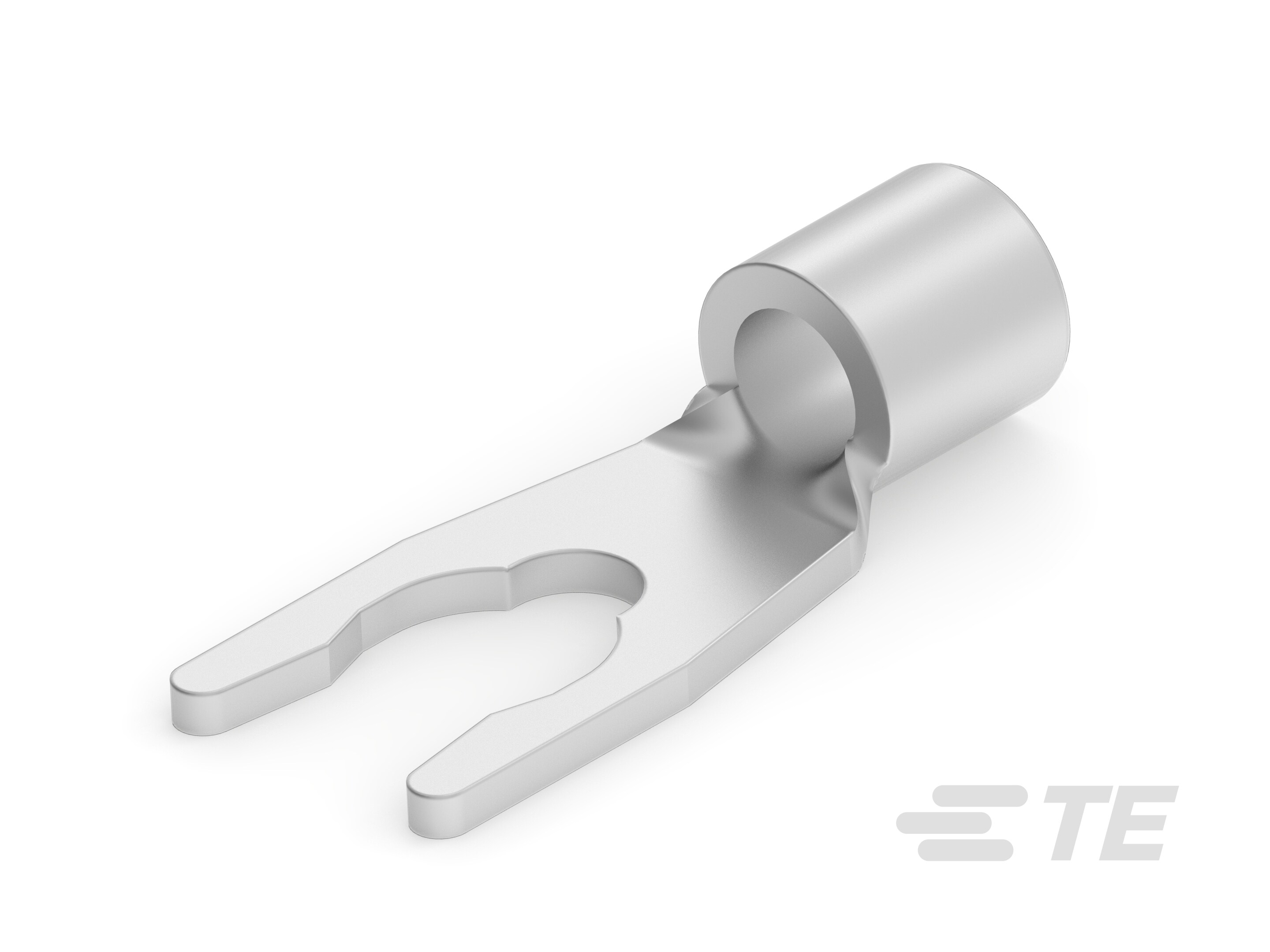

Spring Spade Terminal, 16 AWG, #8 / M4 Stud, 4.17 mm [.164 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 53833-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Serrated Termination, Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.637 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Snap, Spring |
| Termination | Crimp |
| Width - Outer Edges | 0.244 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
