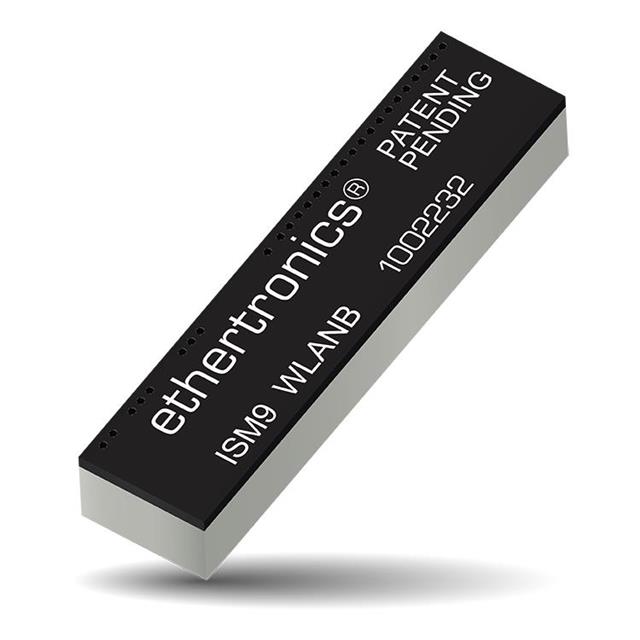

1002232
ActiveKYOCERA AVX
ANTENNA PCB, ISM9 WLAMB
1002232
ActiveKYOCERA AVX
ANTENNA PCB, ISM9 WLAMB
Description
General part information
1002232
RF ANTENNA ISM, LoRa, Sigfox, WLAN Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002232 |
|---|---|
| Antenna Type | Chip |
| Applications | ISM, Sigfox, WLAN, LoRa |
| Frequency (Center/Band) | 868MHz, 2.4GHz, 915MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 2 GHz, 300 MHz |
| Frequency Range (Band 1) Maximum | 870 MHz |
| Frequency Range (Band 1) Minimum | 863 MHz |
| Frequency Range (Band 2) Maximum | 928 MHz |
| Frequency Range (Band 2) Minimum | 902 MHz |
| Frequency Range (Band 3) Maximum | 2.5 GHz |
| Frequency Range (Band 3) Minimum | 2.4 GHz |
| Gain | 0.21 dBi, 1.5 dBi, 0.51 dBi |
| Height (Max) | 0.126 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| Power - Max | 2 VA |
| RF Family/Standard | WiFi, General ISM, 802.15.4 |
| Termination | Solder |
| VSWR | 2 |
