AT10HV
ActiveKnowles Syfer

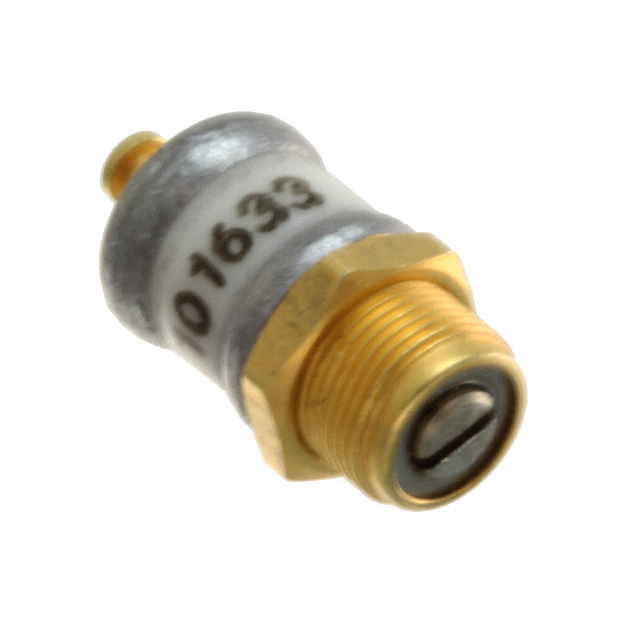

CAP TRIMMER 1-10PF 1000V PNL MNT
AT10HV
ActiveKnowles Syfer
CAP TRIMMER 1-10PF 1000V PNL MNT
Description
General part information
AT10HV
1 ~ 10pF Trimmer Capacitor 1000 V Top Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AT10HV |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 10 pF |
| Capacitance Range (Min) | 1 pF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | General Purpose |
| Height - Seated (Max) | 0.48 in |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Q | 2000 |
| Size / Dimension Diameter | 0.28 in |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
