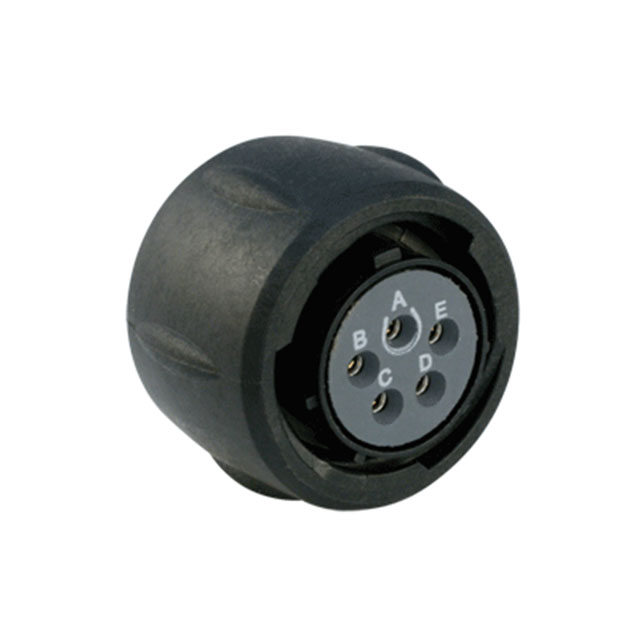

Specification	UTS614E5S

Applications	Energy, Telecommunications, Instrumentation, Lighting
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 µin
Contact Material	Brass
Current Rating	12 A
Fastening Type	Bayonet Lock
Features	UV Resistant, Coupling Nut
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	5 mm
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	600 V

UTS61 Series

...

Part	Color	Features	Shell Size - Insert Width	Shell Size - Insert Length	Shell Material	Current Rating	Orientation	Insert Material	Contact Material	Applications	Voltage Rating	Termination	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Primary Material	Material Flammability Rating	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Fastening Type	Mounting Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Position Types	Contact Size	Contact Type	Note	Housing Color	Type	Contact Shape
Amphenol Aerospace Operations UTS614E12SW	Black	Coupling Nut UV Resistant	12 mm	14 mm	Nylon Polyamide (PA)	4.5 A	W	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Female Sockets Plug	12	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)
Amphenol Aerospace Operations UTS610E98SX	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	6 A	X	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Female Sockets Plug	6	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	98	10
Amphenol Aerospace Operations UTS612E14P	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	4.5 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Male Pins Plug	14	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	14	12
Amphenol Aerospace Operations UTS610E7P	Black	Coupling Nut UV Resistant	7 mm	10 mm	Nylon Polyamide (PA)	6 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Male Pins Plug	7	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)
Amphenol Aerospace Operations UTS612E4S	Black	Coupling Nut UV Resistant	4 mm	12 mm	Nylon Polyamide (PA)	10 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	500 V	Solder Cup	16 µin	Female Sockets Plug	4	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)			PE
Amphenol Aerospace Operations UTS614E18P	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	4 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Male Pins Plug	18	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	18	14 S
Amphenol Aerospace Operations UTS614E5P	Black	Coupling Nut UV Resistant	5 mm	14 mm	Nylon Polyamide (PA)	12 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	600 V	Solder Cup	16 µin	Male Pins Plug	5	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)
Amphenol Aerospace Operations UTS614E15P	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	12 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	600 V	Solder Cup	16 µin	Male Pins Plug	15	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	15	14 S
Amphenol Aerospace Operations UTS6147P		Coupling Nut	7 mm	14 mm	Thermoplastic		N (Normal)							Plug Housing	7		UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP67 IP69K		Bayonet Lock	Free Hanging (In-Line)			PE	16 S	Crimp	Contacts Not Included	Black	For Male Pins	Circular
Amphenol Aerospace Operations UTS614E18S	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	4 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Female Sockets Plug	18	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	18	14 S
