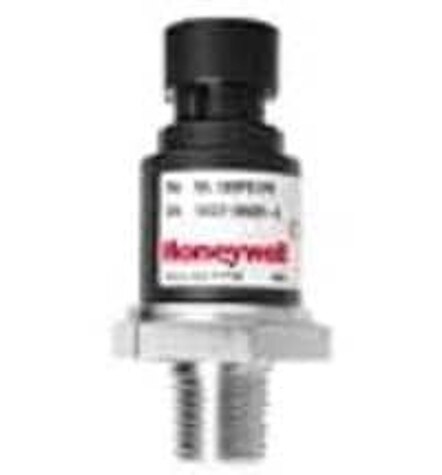

Specification	MLH010BSL06B

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure	435.11 PSI
Operating Pressure	145.04 PSI
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Current (Max)	20 mA
Output Current (Min)	4 mA
Output Type	Analog Current
Package / Case	Cylinder, Metal
Port Diameter	0.125 "
Port Feature	NPT
Port Gender	Male
Port Style	Threaded
Pressure Type	Sealed Gauge
Termination Length	1 m
Termination Style	Cable
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	9.5 V

MLH Series

Part	Operating Pressure	Maximum Pressure	Features	Pressure Type	Applications	Port Style	Output Type	Output Current (Max)	Output Current (Min)	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Accuracy	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Port Diameter	Port Feature	Port Gender	Package / Case
Honeywell Sensing and Productivity Solutions MLH025BGD14B	362.59 PSI	1087.78 PSI	Amplified Output Temperature Compensated	Vented Gauge	Industrial Automation	Threaded	Analog Current	20 mA	4 mA	M12	125 °C	-40 °C	0.25 %	30 VDC	9.5 V	0.25 "	BSP	Male	Cylinder Metal
Honeywell Sensing and Productivity Solutions MLH025BSB55A
