Specification	UTP0148SH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Position Types	PE
Shell Material	Glass Filled, Polyester
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	8 mm
Shielding	Unshielded
Type	For Female Sockets

UTP01 Series

Part	Contact Size	Shell Size - Insert Length	Shell Size - Insert Width	Housing Color	Type	Shell Material	Number of Positions	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Orientation	Contact Shape	Material Flammability Rating	Connector Type	Fastening Type	Note	Shielding	Contact Type	Ingress Protection IP Rating	Ingress Protection Description	Position Types	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)

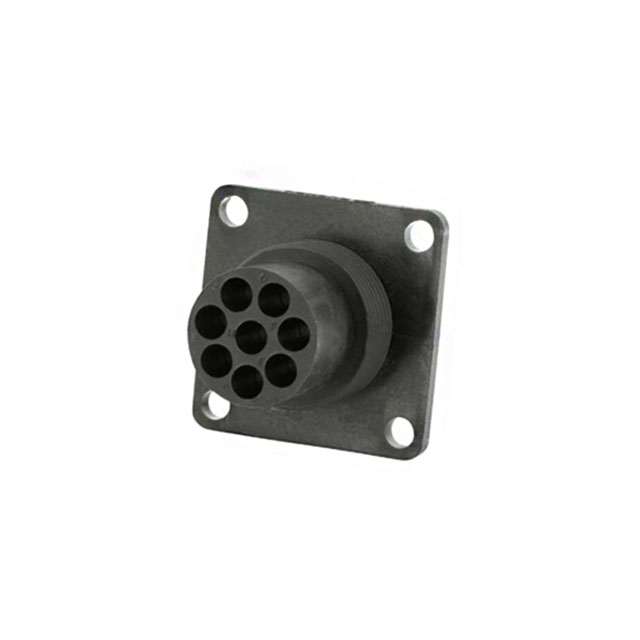

Amphenol Aerospace Operations UTP0128PH	16 S	12 mm	8 mm	Black	For Male Pins	Glass Filled Polyester	8	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTP0187PH	16 S	18 mm	7 mm	Black	For Male Pins	Glass Filled Polyester	7	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp	IP65	Dust Tight Water Resistant	PE
Amphenol Aerospace Operations UTP01619S	16 S			Black	For Female Sockets	Glass Filled Polyester	19	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp				19	16 S

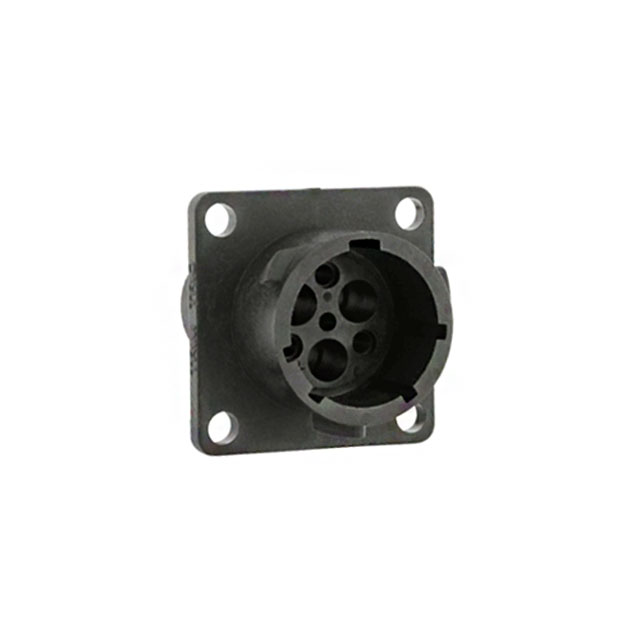

Amphenol Aerospace Operations UTP0122G1PH	12	12 mm	2 mm	Black	For Male Pins	Glass Filled Polyester	3	Flange	125 °C	-55 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp	IP65	Dust Tight Water Resistant	PE
Amphenol Aerospace Operations UTP01412S	16 S	14 mm	12 mm	Black	For Female Sockets	Glass Filled Polyester	12	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp
Amphenol Aerospace Operations UTP01619P	16 S			Black	For Male Pins	Glass Filled Polyester	19	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp				19	16 S
Amphenol Aerospace Operations UTP01412P	16 S	14 mm	12 mm	Black	For Male Pins	Glass Filled Polyester	12	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp
Amphenol Aerospace Operations UTP01412SH	16 S	14 mm	12 mm	Black	For Female Sockets	Glass Filled Polyester	12	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp	IP65	Dust Tight Water Resistant

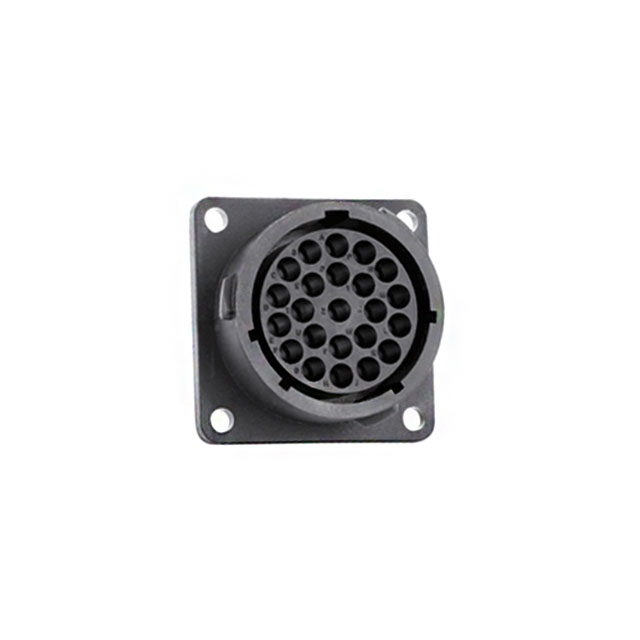

Amphenol Aerospace Operations UTP01823SH	16 S			Black	For Female Sockets	Glass Filled Polyester	23	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp	IP65	Dust Tight Water Resistant		23	18
Amphenol Aerospace Operations UTP0187P	16 S	18 mm	7 mm	Black	For Male Pins	Glass Filled Polyester	7	Flange	125 °C	-25 °C	Panel Mount	N (Normal)	Circular	UL94 V-0	Receptacle Housing	Bayonet Lock	Contacts Not Included	Unshielded	Crimp			PE
