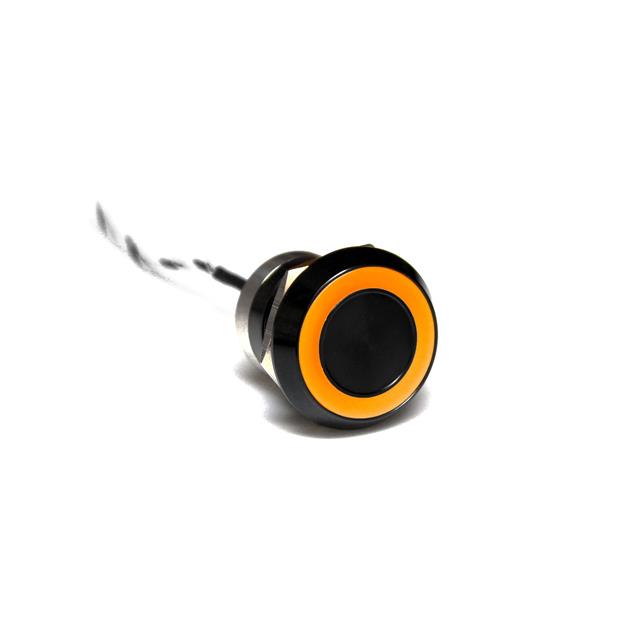

Specification	MC22MCBAM

Actuator Type	Round, Flush, Button
Circuit	SPST-NC
Color	Amber
Color - Actuator/Cap	Black
Current Rating	0.5 A
Electrical Life (Cycles)	50000000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Mechanical Life (Cycles)	50000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	22.2 mm
Panel Cutout Shape	Circular
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Illuminated, Capacitive
Voltage Rating - DC	24 V

MC Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Color	Illumination Type	Switch Function	Actuator Marking	Type	Voltage Rating - DC	Actuator Type	Color - Actuator/Cap	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Circuit	Current Rating	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Illumination Voltage (Nominal)
BULGIN LIMITED MC19LOBRG	50000000 Cycles	50000000 Cycles	-25 °C	55 °C	Green Red	LED	Off-On	No Marking	Capacitive Illuminated	12 V	Button Flush Round	Black	Wire Leads	19.2 mm	Circular	SPST-NO	0.5 A	Front Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K
BULGIN LIMITED MC19LOBGN	50000000 Cycles	50000000 Cycles	-25 °C	55 °C	Green	LED	Off-On		Capacitive Illuminated	24 V	Button Flush Round	Black	Wire Leads	19.2 mm	Circular	SPST-NO	0.5 A	Front Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K	12 V
BULGIN LIMITED MC19LOBGR	50000000 Cycles	50000000 Cycles	-25 °C	55 °C	Green Red	LED	Off-On	No Marking	Capacitive Illuminated	12 V	Button Flush Round	Black	Wire Leads	19.2 mm	Circular	SPST-NO	0.5 A	Front Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K
