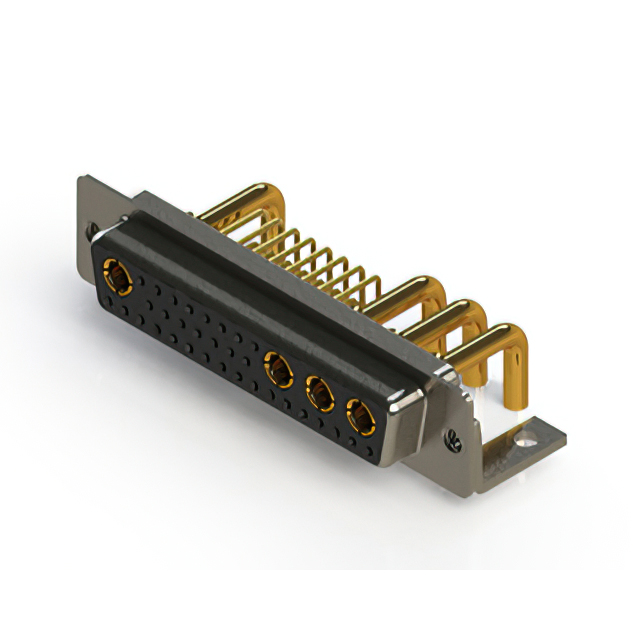

630-36W4250-3NC

Active

EDAC Inc.

CONN D-SUB RCPT 36POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-36W4250-3NC

Active

EDAC Inc.

CONN D-SUB RCPT 36POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-36W4250-3NC

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5 (DD, D), 36W4
Termination	Solder
Voltage Rating	125 VDC

630-36W Series

...

Part	Flange Feature	Connector Style	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Dielectric Material	Features	Mounting Type	Contact Material	Backset Spacing	Backset Spacing	Connector Type	Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish	Number of Rows	Termination	Contact Finish Thickness	Current Rating (Amps)	Shell Material, Finish	Current Rating (Amps)
EDAC Inc. 630-36W4640-7TB	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)	4	32	0.76 Ám	30 Áin	Coax Signal	Polyester Thermoplastic	Board Lock Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder
EDAC Inc. 630-36W4250-1N4	Housing/Shell (4-40)	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash	10A 5A	Nickel Plated Steel
EDAC Inc. 630-36W4250-1T5	4-40	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Board Lock Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash	10A 5A
EDAC Inc. 630-36W4640-4N1	Housing/Shell (Unthreaded)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Shielded	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-36W4650-4N3	Housing/Shell (4-40)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Board Lock Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-36W4250-1TC	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash	10A 5A
EDAC Inc. 630-36W4640-5T6	4-40	Combo D-Sub	36W4 5 (DD D)	4	32	0.76 Ám	30 Áin	Coax Signal	Polyester Thermoplastic		Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder
EDAC Inc. 630-36W4640-4NC	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A
EDAC Inc. 630-36W4250-3NC	Housing/Shell (M3)	Combo D-Sub	36W4 5 (DD D)					Signal and Power	Polyester Thermoplastic	Mounting Brackets	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder	Flash		Nickel Plated Steel	5 A 30 A
EDAC Inc. 630-36W4650-4N1	Housing/Shell (Unthreaded)	Combo D-Sub	36W4 5 (DD D)			0.76 Ám	30 Áin	Signal and Power	Polyester Thermoplastic	Shielded	Through Hole Right Angle	Copper Alloy	9.4 mm	0.37 in	Receptacle Female Sockets	Black	UL94 V-0	-55 °C	125 °C	125 VDC	Gold	2	Solder			Nickel Plated Steel	5 A 40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 14.60

Description

General part information

630-36W Series

36 (32 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
