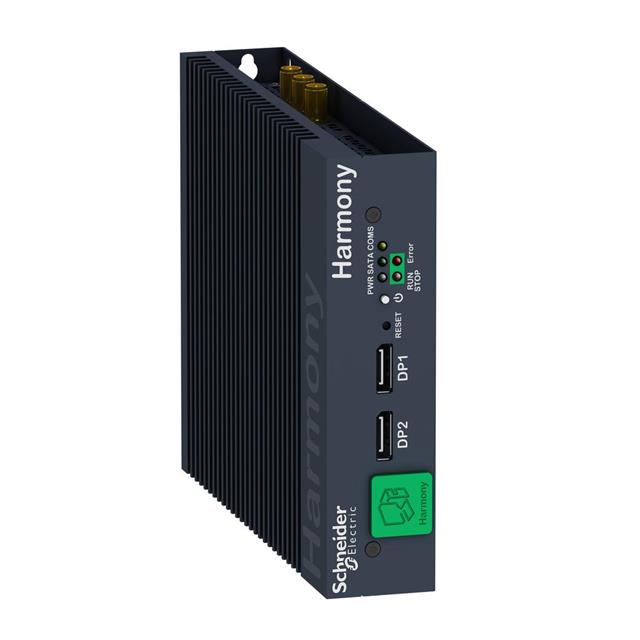

HMIBMOMA5DD1101
ActiveSCHNEIDER ELECTRIC
MODULAR BOX PC, HARMONY IPC, OPT
HMIBMOMA5DD1101
ActiveSCHNEIDER ELECTRIC
MODULAR BOX PC, HARMONY IPC, OPT
Description
General part information
HMIBMOMA5DD1101
MODULAR BOX PC, HARMONY IPC, OPT
Technical Specifications
Parameters and characteristics for this part
| Specification | HMIBMOMA5DD1101 |
|---|---|
| Approval Agency | CSA, cUL, EAC, ATEX, cULus, CE, UL |
| Core Processor | Intel® Atom® E3930 |
| Display Type | No Display |
| Expansion Type | PCIe |
| Ingress Protection | IP40 |
| Memory Capacity (Installed) | 4 GB |
| Memory Type | DDR3 |
| Operating System | Windows 10 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Storage Capacity | 64 GB |
| Storage Type | SSD |
| Type | Box PC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Weight | 2.8 lbs |
