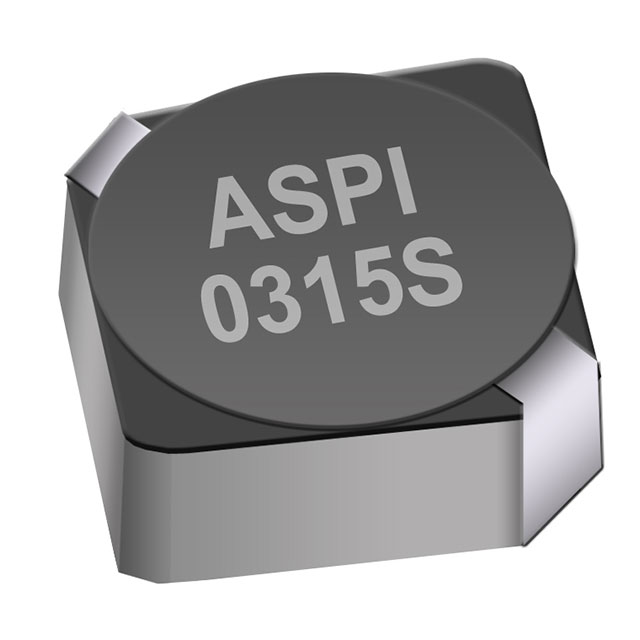

ASPI-0315S-8R2M-T
ObsoleteAbracon LLC
FIXED IND 8.2UH 510MA 140MOHM SM
ASPI-0315S-8R2M-T
ObsoleteAbracon LLC
FIXED IND 8.2UH 510MA 140MOHM SM
Description
General part information
ASPI-0315S-8R2M-T
8.2 µH Shielded Drum Core, Wirewound Inductor 510 mA 140mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-0315S-8R2M-T |
|---|---|
| Current Rating | 0.51 A |
| DC Resistance (DCR) (Max) | 140 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.146 in |
| Size / Dimension Width | 0.146 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
