11K5015-JMNG
ActiveGrayhill Inc.

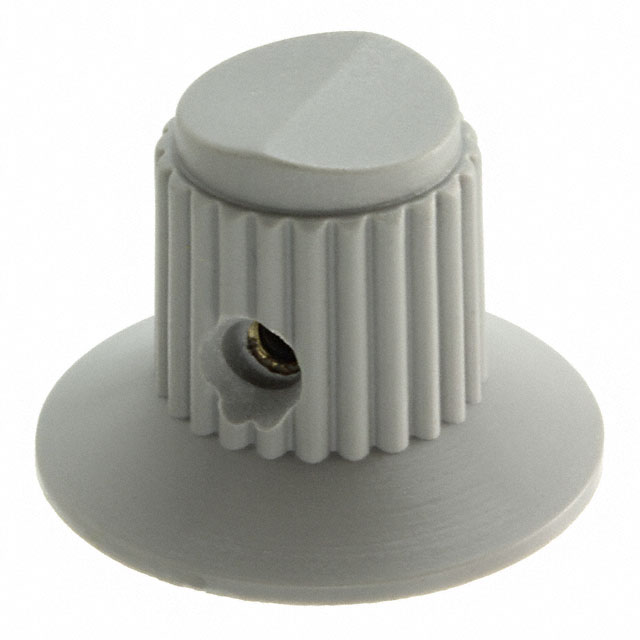

KNOB 1/8" SHAFT GRAY COLOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11K5015-JMNG
ActiveGrayhill Inc.
KNOB 1/8" SHAFT GRAY COLOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 11K5015-JMNG | 11K5015 Series |
|---|---|---|
| Accessory Type | - | Knob - Black |
| Color | - | Black, Gray |
| Diameter | - | 22.71 mm |
| Diameter | - | 0.894 in |
| Features | - | Spring Clip, Set Screws |
| For Use With/Related Products | Rotary Switches and Encoders | Rotary Switches and Encoders |
| Height | - | 16.81 mm |
| Height | - | 0.662 in |
| Indicator | - | Arrow on Skirt |
| Material | - | Nylon, Plastic |
| Shaft Size | - | 0.125 - 0.5 in |
| Shaft Size | - | 3.18 - 12.7 mm |
| Style | - | Cylindrical with Skirt |
| Type | - | Serrated, Straight, Knurled |
11K5015 Series
KNOB 1/4" SHAFT GRAY COLOR
| Part | For Use With/Related Products | Material | Height [z] | Height [z] | Indicator [custom] | Style | Diameter [diameter] | Diameter [diameter] | Type | Color | Shaft Size | Shaft Size | Features | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 11K5015-KMNG | Rotary Switches and Encoders | |||||||||||||
Grayhill Inc. 11K5015-KCNB | Nylon | 16.81 mm | 0.662 in | Arrow on Skirt | Cylindrical with Skirt | 22.71 mm | 0.894 in | Serrated | Black | 0.5 in | 12.7 mm | |||
Grayhill Inc. 11K5015-ECNB | Plastic | 16.81 mm | 0.662 in | Arrow on Skirt | Cylindrical with Skirt | 22.71 mm | 0.894 in | Knurled, Straight | Black | 0.157 " | 4 mm | Spring Clip | ||
Grayhill Inc. 11K5015-KCNG | Plastic | 16.81 mm | 0.662 in | Arrow on Skirt | Cylindrical with Skirt | 22.71 mm | 0.894 in | Knurled, Straight | Gray | 0.25 in | 6.35 mm | Spring Clip | ||
Grayhill Inc. 11K5015-JMNG | Rotary Switches and Encoders | |||||||||||||
Grayhill Inc. 11K5015-KMNB | Rotary Switches and Encoders | Knob - Black | ||||||||||||
Grayhill Inc. 11K5015-JCNG | Plastic | 16.81 mm | 0.662 in | Arrow on Skirt | Cylindrical with Skirt | 22.71 mm | 0.894 in | Knurled, Straight | Gray | 0.125 in | 3.18 mm | Spring Clip | ||
Grayhill Inc. 11K5015-EMNG | Plastic | 16.81 mm | 0.662 in | Arrow on Skirt | Cylindrical with Skirt | 22.71 mm | 0.894 in | Knurled, Straight | Gray | 0.157 " | 4 mm | Set Screws | ||
Grayhill Inc. 11K5015-JCNB | Plastic | 16.81 mm | 0.662 in | Arrow on Skirt | Cylindrical with Skirt | 22.71 mm | 0.894 in | Knurled, Straight | Black | 0.125 in | 3.18 mm | Spring Clip |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.18 | |
| 5 | $ 6.02 | |||
| 10 | $ 5.85 | |||
| 25 | $ 5.72 | |||
Description
General part information
11K5015 Series
Knob - Gray
Documents
Technical documentation and resources
