151260-2320-RB

Active

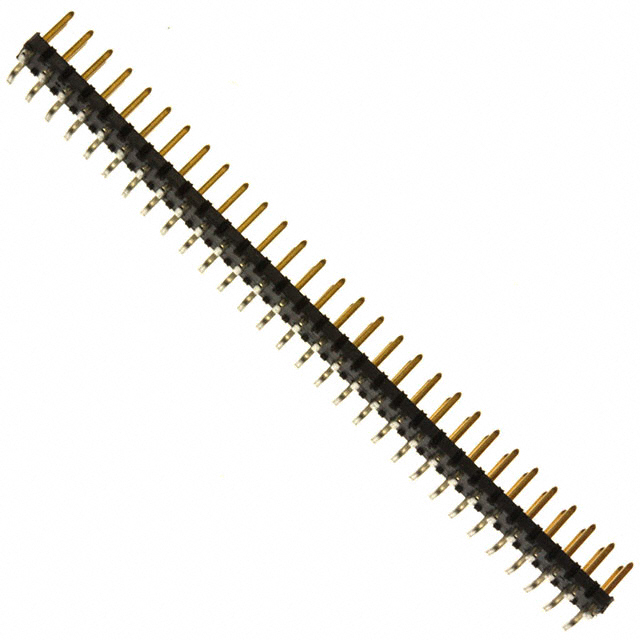

CONN HEADER SMD 60POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER SMD 60POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	151260-2320-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

CONN HEADER SMD 60POS 2MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mounting Type	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Termination	Shrouding	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Material	Fastening Type	Number of Rows	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Shape
3M 151260-2320-RB	30 Áin	0.76 Ám	Header	Surface Mount	Male Pin	0.06 in	1.52 mm	200 µin	5.08 µm	0.079 in	2 mm	UL94 V-0	105 ░C	-55 °C	Black	Solder	Unshrouded	All	0.079 in	2 mm	60	Copper Alloy	Push-Pull	2	Gold	0.13 in	3.3 mm	Tin	Square
