T4145015081-002
ActiveTE Connectivity AMP Connectors

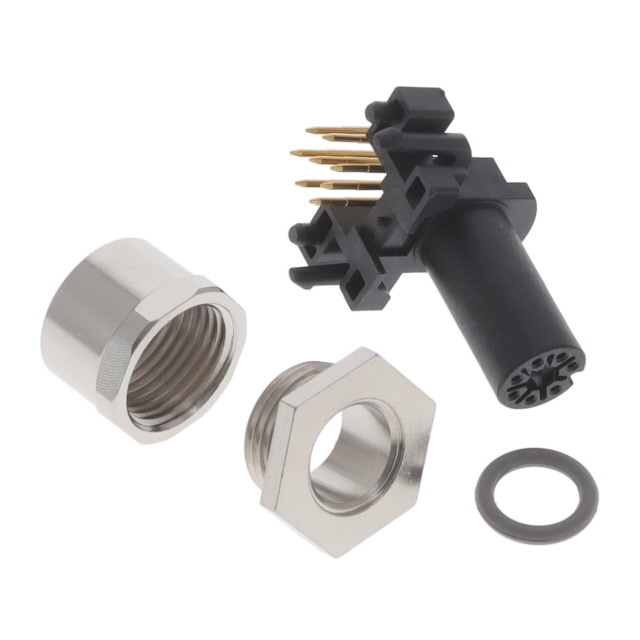

M12 RA PCB FEM 8POS UNSHIELD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4145015081-002
ActiveTE Connectivity AMP Connectors
M12 RA PCB FEM 8POS UNSHIELD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4145015081-002 | T41450 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Female Sockets, Plug, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 4 A |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Polyamide (PA66), Nylon 6/6, Nylon, Polyamide (PA) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 8 | 2 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | - | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-8 | M12-5, M12-2, M12-8, M12-4 |
| Shielding | Unshielded | Shielded, Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 30 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 31.38 | |
| 10 | $ 25.90 | |||
| 30 | $ 24.08 | |||
| 80 | $ 22.75 | |||
| 230 | $ 22.25 | |||
| 440 | $ 22.08 | |||
T41450 Series
CONN PLUG FMALE 5POS GOLD SOLDER
| Part | Contact Finish - Mating | Mounting Feature | Color | Features | Shielding | Voltage Rating | Ingress Protection | Shell Size - Insert | Applications | Contact Material | Mounting Type | Shell Finish | Connector Type | Shell Material | Termination | Insert Material | Primary Material | Current Rating (Amps) | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4145035051-001 | Gold | Bulkhead - Rear Side Nut | Silver | Board Guide, Board Lock | Shielded | 60 VDC | IP67 - Dust Tight, Waterproof | M12-5 | Industrial | Copper Alloy | Panel Mount, Right Angle, Through Hole | Nickel | Female Sockets, Plug | Copper Alloy | Solder | Polyamide (PA66), Nylon 6/6 | Metal | 4 A | A | 85 °C | -40 °C | Flash | |
TE Connectivity AMP Connectors T4145015021-001 | Gold | Bulkhead - Rear Side Nut | Silver | Board Guide, Board Lock | Unshielded | 250 VDC | IP67 - Dust Tight, Waterproof | M12-2 | Industrial | Copper Alloy | Panel Mount, Right Angle, Through Hole | Nickel | Female Sockets, Plug | Copper Alloy | Solder | Polyamide (PA66), Nylon 6/6 | Metal | 4 A | A | 85 °C | -40 °C | Flash | 2 |
TE Connectivity AMP Connectors T4145015081-002 | Gold | Bulkhead - Front Side Nut | Silver | Board Guide, Board Lock | Unshielded | 30 VDC | IP67 - Dust Tight, Waterproof | M12-8 | Industrial | Copper Alloy | Panel Mount, Right Angle, Through Hole | Receptacle, Female Sockets | Copper Alloy | Solder | Nylon, Polyamide (PA) | Metal | 2 A | A | 85 °C | -40 °C | Flash | 8 | |
TE Connectivity AMP Connectors T4145035081-002 | Gold | Bulkhead - Front Side Nut | Silver | Board Guide, Board Lock | Shielded | 30 VDC | IP67 - Dust Tight, Waterproof | M12-8 | Industrial | Copper Alloy | Panel Mount, Right Angle, Through Hole | Receptacle, Female Sockets | Copper Alloy | Solder | Nylon, Polyamide (PA) | Metal | 2 A | A | 85 °C | -40 °C | Flash | 8 | |
TE Connectivity AMP Connectors T4145015051-001 | Gold | Bulkhead - Rear Side Nut | Silver | Board Guide, Board Lock | Unshielded | 60 VDC | IP67 - Dust Tight, Waterproof | M12-5 | Industrial | Copper Alloy | Panel Mount, Right Angle, Through Hole | Nickel | Female Sockets, Plug | Copper Alloy | Solder | Polyamide (PA66), Nylon 6/6 | Metal | 4 A | A | 85 °C | -40 °C | Flash | |
TE Connectivity AMP Connectors T4145035041-001 | Gold | Bulkhead - Rear Side Nut | Silver | Board Guide, Board Lock | Shielded | 250 VDC | IP67 - Dust Tight, Waterproof | M12-4 | Industrial | Copper Alloy | Panel Mount, Right Angle, Through Hole | Nickel | Female Sockets, Plug | Copper Alloy | Solder | Polyamide (PA66), Nylon 6/6 | Metal | 4 A | A | 85 °C | -40 °C | Flash | 4 |
Description
General part information
T41450 Series
8 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
