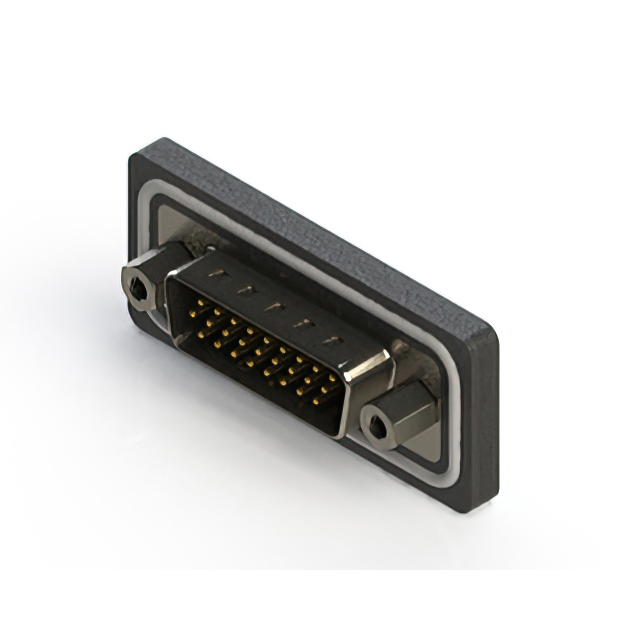

637-W26-222-012

Active

EDAC Inc.

637W (WATERPROOF) SERIES VERTICA

Search across all available documentation for this part.

Active

EDAC Inc.

637W (WATERPROOF) SERIES VERTICA

Technical Specifications

Parameters and characteristics for this part

Specification	637-W26-222-012

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density

Part	Connector Type	Flange Feature	Dielectric Material	Current Rating (Amps)	Ingress Protection	Material Flammability Rating	Number of Positions	Contact Finish	Number of Rows	Mounting Type	Features	Contact Finish Thickness	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Material, Finish	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 637-W26-222-012	Male Pins Plug	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	3 A	IP67 - Dust Tight Waterproof	UL94 V-0	26	Gold	3	Free Hanging (In-Line)	Grounding Indents Shielded	Flash	D-Sub High Density	2	(DA A) High Density	Nickel Plated Steel	Signal	-25 °C	85 °C	Copper Alloy	Black
EDAC Inc. 637-W26-221-012	Male Pins Plug	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	3 A	IP67 - Dust Tight Waterproof	UL94 V-0	26	Gold	3	Through Hole	Grounding Indents Shielded	Flash	D-Sub High Density	2	(DA A) High Density	Nickel Plated Steel	Signal	-25 °C	85 °C	Copper Alloy	Black	Solder
EDAC Inc. 637-W26-322-012	Male Pins Plug	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	3 A	IP67 - Dust Tight Waterproof	UL94 V-0	26	Gold	3	Free Hanging (In-Line)	Grounding Indents Shielded		D-Sub High Density	2	(DA A) High Density	Nickel Plated Steel	Signal	-25 °C	85 °C	Copper Alloy	Black		15 µin	0.38 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	126	$ 13.61

General part information

26 Position D-Sub, High Density Plug, Male Pins Connector
