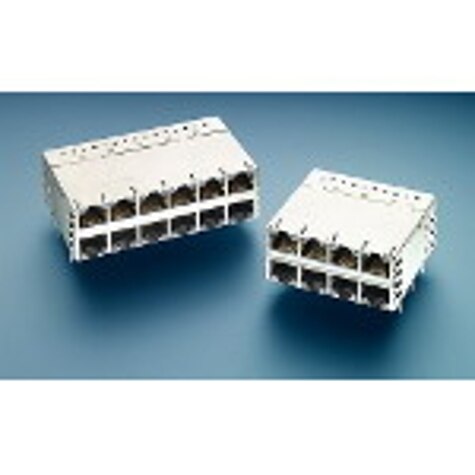

5-6610163-5
ActiveBel Fuse Inc.
MODULAR CONNECTORS / ETHERNET CONNECTORS
5-6610163-5
ActiveBel Fuse Inc.
MODULAR CONNECTORS / ETHERNET CONNECTORS
Description
General part information
5-6610163-5
MODULAR CONNECTORS / ETHERNET CONNECTORS
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-6610163-5 |
|---|---|
| Applications | AutoMDIX, 10/100 Base-T |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Features | Board Lock |
| Height Above Board | 0.555 in |
| LED Color | Yellow - Green, Green |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 6 |
| Number of Ports | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
