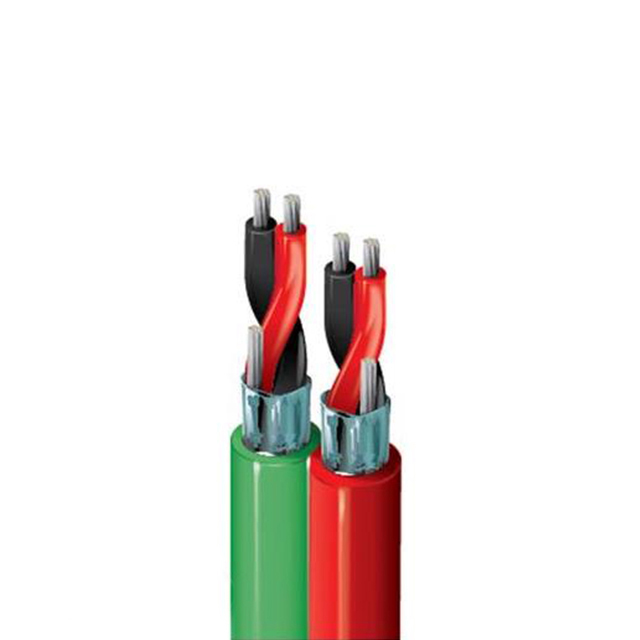

9451D J77U1000

Active

Belden Inc.

2 BOND#22 FSPR PO FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

2 BOND#22 FSPR PO FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	9451D J77U1000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio, Signal, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Features	Ratings	Jacket (Insulation) Material	Shield Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Length	Length	Conductor Material	Jacket Color	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Usage	Conductor Insulation
Belden Inc. 9451D J77U1000	Multi-Pair	Drain Wire	UL Style CMR	Poly-Vinyl Chloride (PVC)	Aluminum Polyester	Foil	7	30 AWG	22 AWG	1000 ft	304.8 m	Copper Tinned	Red	300 V	0.02 in	0.508 mm	6.86 mm	0.27 in	100 %	-30 ░C	105 ░C	4	Audio Control Signal	Polypropylene (PP)
Belden Inc. 9451D 053U1000	Multi-Pair	Drain Wire	UL Style CMR	Poly-Vinyl Chloride (PVC)	Aluminum Polyester	Foil	7	30 AWG	22 AWG	1000 ft	304.8 m	Copper Tinned	Red	300 V	0.02 in	0.508 mm	6.86 mm	0.27 in	100 %	-30 ░C	105 ░C	4	Audio Control Signal	Polypropylene (PP)
Belden Inc. 9451D G04U1000	Multi-Pair	Drain Wire	UL Style CMR	Poly-Vinyl Chloride (PVC)	Aluminum Polyester	Foil	7	30 AWG	22 AWG	1000 ft	304.8 m	Copper Tinned	Red	300 V	0.02 in	0.508 mm	6.86 mm	0.27 in	100 %	-30 ░C	105 ░C	4	Audio Control Signal	Polypropylene (PP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.08

General part information

4 (2 Pair) Conductor Multi-Pair Cable Red 22 AWG Foil 1000.0' (304.8m)
