Description
General part information
3515PCX

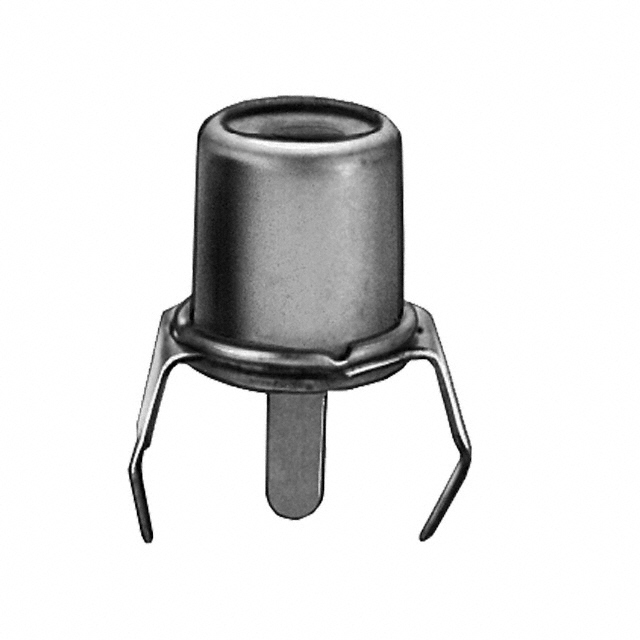

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 3515PCX |
|---|---|
| Body Color | Silver |
| Body Material | Copper Alloy |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Features | Mounting Hardware |
| Gender | Female |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
