Description
General part information
254960-E

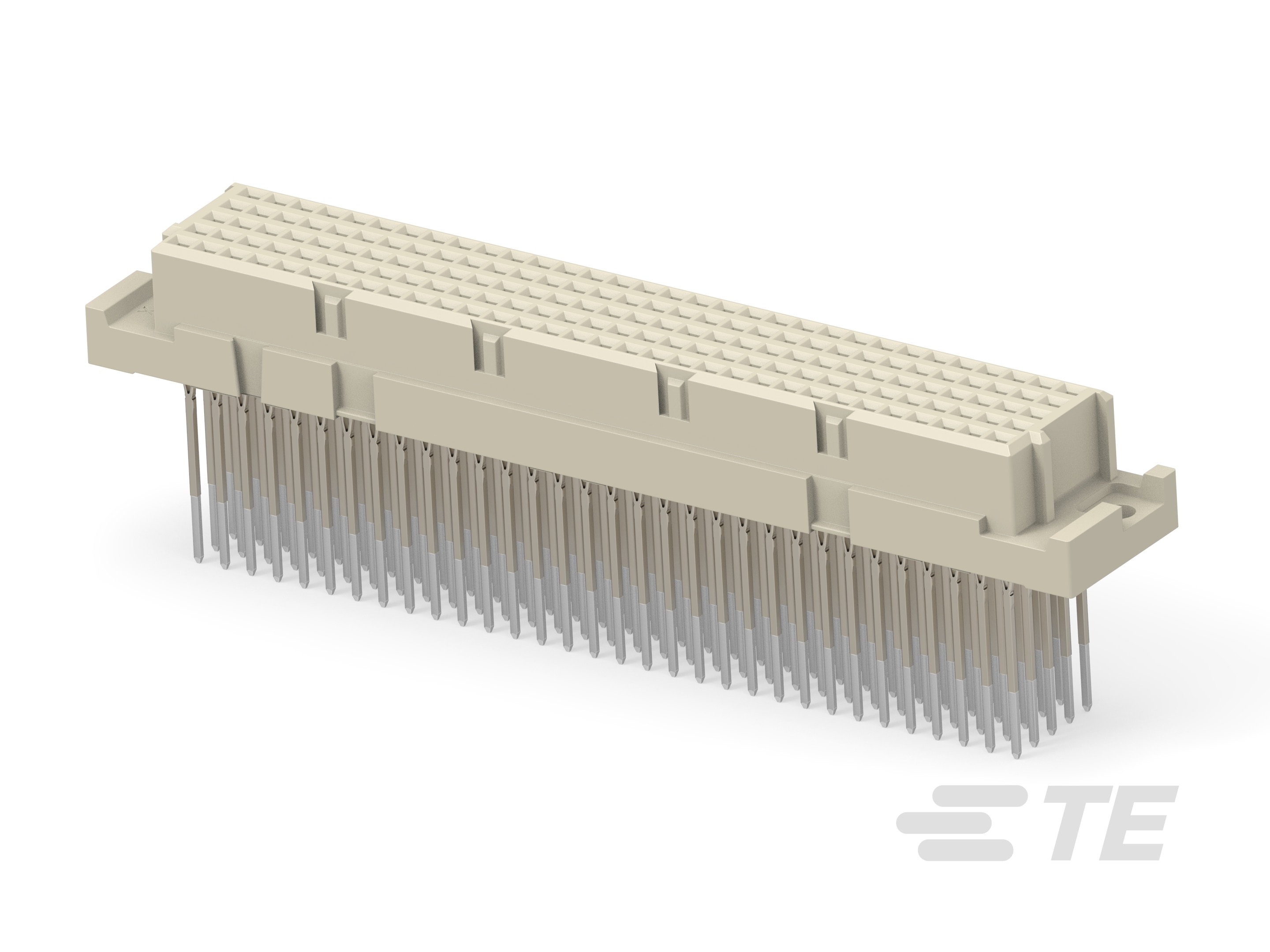

Receptacle, Board-to-Board, 160 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 5 Row, Vertical, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 254960-E |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Features | Mounting Clips |
| Level, Class | 2 |
| Mounting Type | Through Hole |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Pitch | 0.1 in |
| Style | E |
| Termination | Press-Fit |
