969191-2
ActiveTE Connectivity AMP Connectors

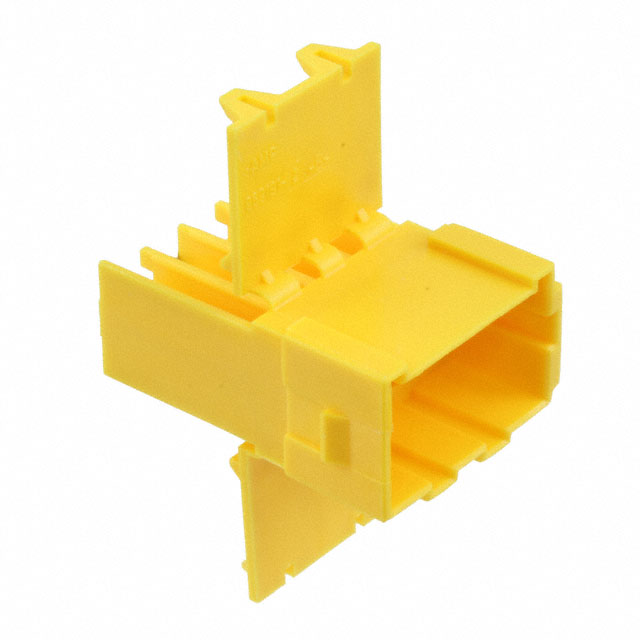

CONN PLUG HSG 8POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
969191-2
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 8POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 969191-2 | 969191 Series |
|---|---|---|
| Color | Yellow | Yellow, Natural, Brown |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 8 | 8 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 130 °C | 130 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Row Spacing | 5.08 mm | 5.08 mm |
| Row Spacing | 0.2 in | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.21 | |
| 10 | $ 2.82 | |||
| 25 | $ 2.74 | |||
| 50 | $ 2.68 | |||
| 100 | $ 2.60 | |||
969191 Series
CONN PLUG HSG 8POS 5.08MM
| Part | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Row Spacing | Row Spacing | Note | Number of Rows | Contact Type | Contact Termination | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 969191-2 | Plug | -40 °C | 130 °C | Polyamide (PA66), Nylon 6/6 | 5.08 mm | 0.2 in | Contacts Not Included | 2 | Tab | Crimp | 0.2 in | 5.08 mm | Free Hanging (In-Line) | 8 | Yellow |
TE Connectivity AMP Connectors 969191-1 | Plug | -40 °C | 130 °C | 5.08 mm | 0.2 in | Contacts Not Included | 2 | Tab | Crimp | 0.2 in | 5.08 mm | Free Hanging (In-Line) | 8 | Natural | |
TE Connectivity AMP Connectors 969191-4 | Plug | -40 °C | 130 °C | Nylon, Polyamide (PA) | 5.08 mm | 0.2 in | 2 | Tab | Crimp | 0.2 in | 5.08 mm | Free Hanging (In-Line) | 8 | Brown |
Description
General part information
969191 Series
8 Rectangular Connectors - Housings Plug Yellow 0.200" (5.08mm)
