MAL205054333E3
ActiveVishay Dale
CAP ALUM 33000UF 10V RADIAL TH
MAL205054333E3
ActiveVishay Dale
CAP ALUM 33000UF 10V RADIAL TH
Description
General part information
MAL205054333E3

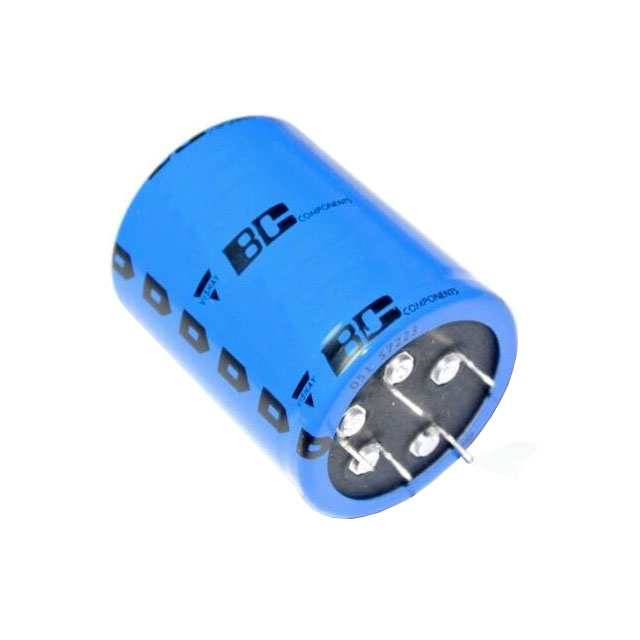

33000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - 5 Lead 29mOhm @ 100Hz 15000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL205054333E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33000 µF |
| ESR (Equivalent Series Resistance) | 29 mOhm |
| Height - Seated (Max) | 2.165 in |
| Impedance | 22 mOhms |
| Lead Spacing | 0.787 in |
| Lifetime | 15000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Lead |
| Package Name | Radial, Can |
| Polarization | Polar |
| Ripple Current | 5 A |
| Size / Dimension Diameter | 1.575 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 10 V |
