Description
General part information

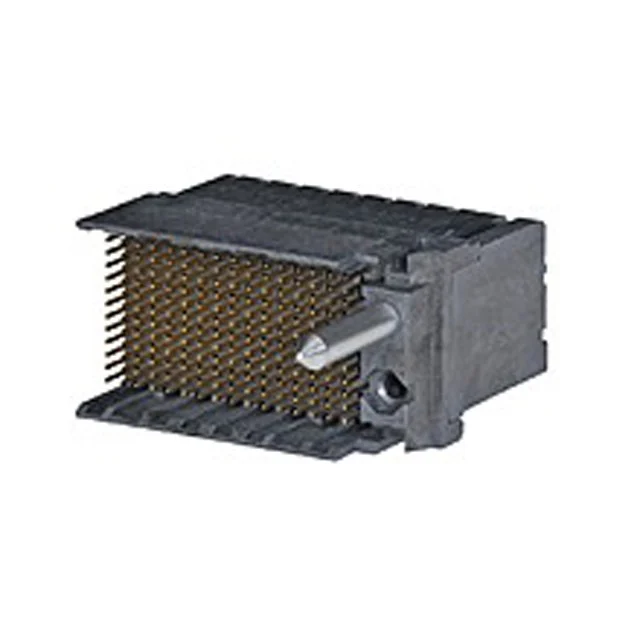

0765009608
IMPACT 4X16 GD RIGHT RAM ENDWALL
Technical Specifications
Parameters and characteristics for this part
| Specification | 0765009608 |
|---|---|
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane, Orthogonal |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Differential Pairs (Typical) | 64 |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Columns | 16 |
| Number of Positions | 192 |
| Number of Positions Loaded | All |
| Number of Rows | 12 |
| Pitch | 0.075 in |
| Termination | Press-Fit |
