ANT-5GWWS3-SMA

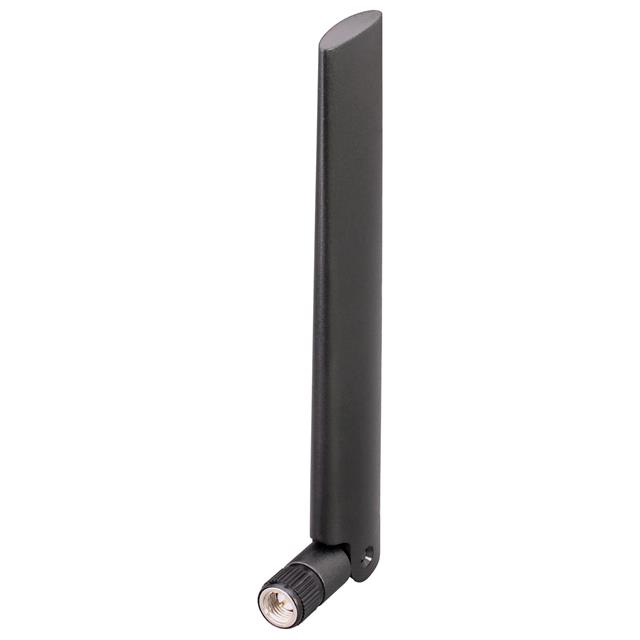

ActiveANTENNA DIPOLE BLADE 5G/LTE SWIVEL SMA
ANT-5GWWS3-SMA
ActiveANTENNA DIPOLE BLADE 5G/LTE SWIVEL SMA
Description
General part information
ANT-5GWWS3-SMA
657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz 2G, 3G, 4G, 5G, LTE Blade, Tilt RF Antenna 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-5GWWS3-SMA |
|---|---|
| Antenna Type | Tilt, Blade |
| Applications | 5G, 4G, LTE, 3G, 2G |
| Frequency (Center/Band) | 5.5375GHz, 3.75GHz, 1.175GHz, 4.7GHz, 842.5MHz, 657.5MHz, 1.593GHz, 1.9475GHz, 2.495GHz, 750.5MHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 10 | 5.5375 GHz |
| Frequency (Center/Band) - 2 | 750.5 MHz |
| Frequency (Center/Band) - 3 | 842.5 MHz |
| Frequency (Center/Band) - 4 | 1.175 GHz |
| Frequency (Center/Band) - 5 | 1.593 GHz |
| Frequency (Center/Band) - 6 | 1.9475 GHz |
| Frequency (Center/Band) - 7 | 2.495 GHz |
| Frequency (Center/Band) - 8 | 3.75 GHz |
| Frequency (Center/Band) - 9 | 4.7 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 10) Maximum | 5.925 GHz |
| Frequency Range (Band 10) Minimum | 5.15 GHz |
| Frequency Range (Band 2) Maximum | 803 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 894 MHz |
| Frequency Range (Band 3) Minimum | 791 MHz |
| Frequency Range (Band 4) Maximum | 1.518 GHz |
| Frequency Range (Band 4) Minimum | 832 MHz |
| Frequency Range (Band 5) Maximum | 1.661 GHz |
| Frequency Range (Band 5) Minimum | 1.525 GHz |
| Frequency Range (Band 6) Maximum | 2.2 GHz |
| Frequency Range (Band 6) Minimum | 1.695 GHz |
| Frequency Range (Band 7) Maximum | 2.69 GHz |
| Frequency Range (Band 7) Minimum | 2.3 GHz |
| Frequency Range (Band 8) Maximum | 4.2 GHz |
| Frequency Range (Band 8) Minimum | 3.3 GHz |
| Frequency Range (Band 9) Maximum | 5 GHz |
| Frequency Range (Band 9) Minimum | 4.4 GHz |
| Gain | 5.4 dBi, 5.1 dBi, 1.4 dBi, 2.3 dBi, 2.8 dBi, 4 dBi, 1.1 dBi, 9.9 dBi, 8.5 dBi |
| Height (Max) | 5.252 in |
| Mounting Type | Connector Mount |
| Number of Bands | 10 |
| Power - Max | 30 W |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2.3, 1.7, 2.8, 1.9, 2, 2.5, 2.4, 4.5, 2.1 |
