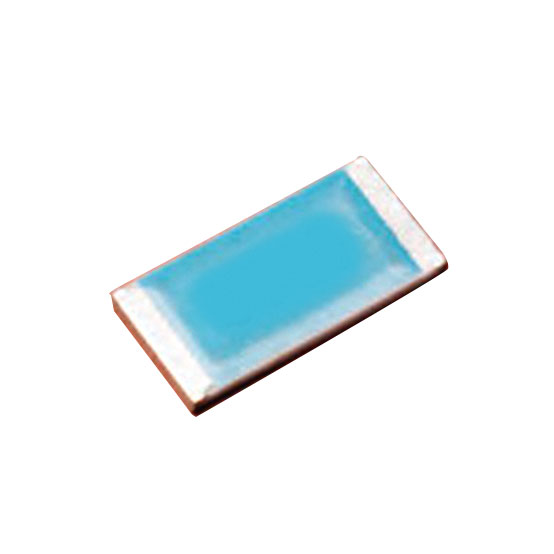

RK73H2BTTD1740D
ActiveKOA Speer Electronics, Inc.
RES 174 OHM 0.5% 1/4W 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RK73H2BTTD1740D
ActiveKOA Speer Electronics, Inc.
RES 174 OHM 0.5% 1/4W 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RK73H2BTTD1740D |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Ratings | AEC-Q200 |
| Resistance | 174 Ohms |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 100 ppm/°C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.30 | |
| Digi-Reel® | 1 | $ 0.30 | ||
| Tape & Reel (TR) | 5000 | $ 0.05 | ||
Description
General part information
RK73H2BTTD1740D
174 Ohms ±0.5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
