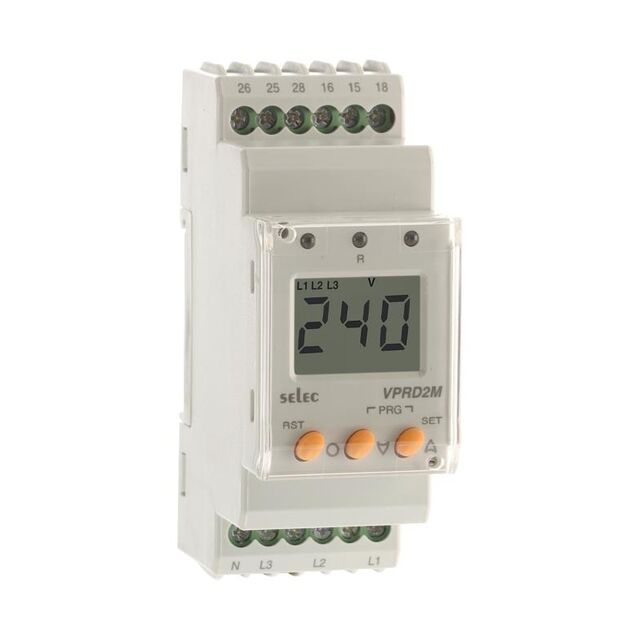

VPRD2M-BL-CE
ActiveSelec Controls USA Inc.
DIGITAL ,1-2W, 3-4W, UNDER / OVE
VPRD2M-BL-CE
ActiveSelec Controls USA Inc.
DIGITAL ,1-2W, 3-4W, UNDER / OVE
Description
General part information
VPRD2M-BL-CE
DIGITAL ,1-2W, 3-4W, UNDER / OVE
Technical Specifications
Parameters and characteristics for this part
| Specification | VPRD2M-BL-CE |
|---|---|
| Delay Time (Maximum) | 300 Sec |
| Delay Time (Minimum) | 0 Sec |
| Features | Manual Reset, Automatic Reset |
| Function | Phase Loss, Undervoltage, Overvoltage, Phase Sequence, Phase Asymmetry |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Screw Terminal |
| Trip Voltage (Max) | 288 VAC |
| Trip Voltage (Min) | 127 VAC |
| Voltage - Supply (Maximum) | 288 VAC/DC |
| Voltage - Supply (Minimum) | 127 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
