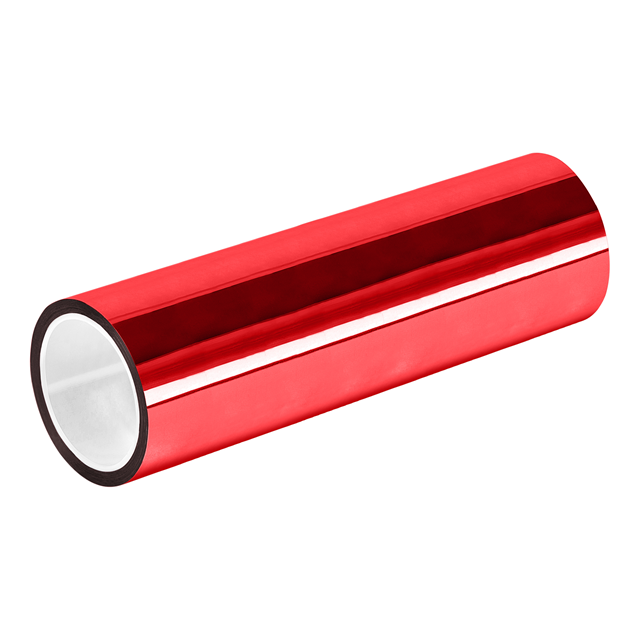

TC830 10" X 72YD-RED

Active

TapeCase

TAPE METALLIZED POLY RED 72YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC830 10" X 72YD-RED

Active

TapeCase

TAPE METALLIZED POLY RED 72YD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC830 10" X 72YD-RED	TC830 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Red	Silver, Red, Gold, Black, Green
Length	66 m	66 m
Length	216 ft	216 ft
Length	72 yd	72 yd
Tape Type	Metallized Polyester Film	Metallized Polyester Film
Temperature Range [Max]	260 °C	260 °C
Temperature Range [Max]	500 °F	500 °F
Temperature Range [Min]	-73 °C	-73 °C
Temperature Range [Min]	-99 °F	-99 °F
Thickness	2 mils	2 mils
Thickness	0.002 in	0.002 in
Thickness	0.051 mm	0.051 mm
Thickness - Backing, Carrier	1.2 mils	1.2 mils
Thickness - Backing, Carrier	0.0012 "	0.0012 "
Thickness - Backing, Carrier	0.03 mm	0.03 mm
Usage	Splicing, Surface Finishing, Detecting	Splicing, Surface Finishing, Detecting

TC830 Series

TAPE METALLIZED POLY SILV 72YD

...

Part	Length	Length	Length	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Backing, Carrier	Usage	Tape Type	Adhesive	Color
TapeCase TC830 18" X 72YD-SILVER	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Silver
TapeCase TC830 35" X 72YD-RED	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Red
TapeCase TC830 29" X 72YD-GOLD	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Gold
TapeCase TC830 12" X 72YD-SILVER	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Silver
TapeCase TC830 7" X 72YD-RED	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Red
TapeCase TC830 38" X 72YD-SILVER	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Silver
TapeCase TC830 13" X 72YD-SILVER	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Silver
TapeCase TC830 12" X 72YD-BLACK	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Black
TapeCase TC830 22" X 72YD-GOLD	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Gold
TapeCase TC830 29" X 72YD-RED	66 m	216 ft	72 yd	2 mils	0.002 in	0.051 mm	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Polyester Film	Detecting, Splicing, Surface Finishing	Metallized Polyester Film	Acrylic	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2	$ 214.24

Description

General part information

TC830 Series

Metallized Polyester Film Tape Acrylic Adhesive Red X 216' (66.0m) 72 yds

Documents

Technical documentation and resources
