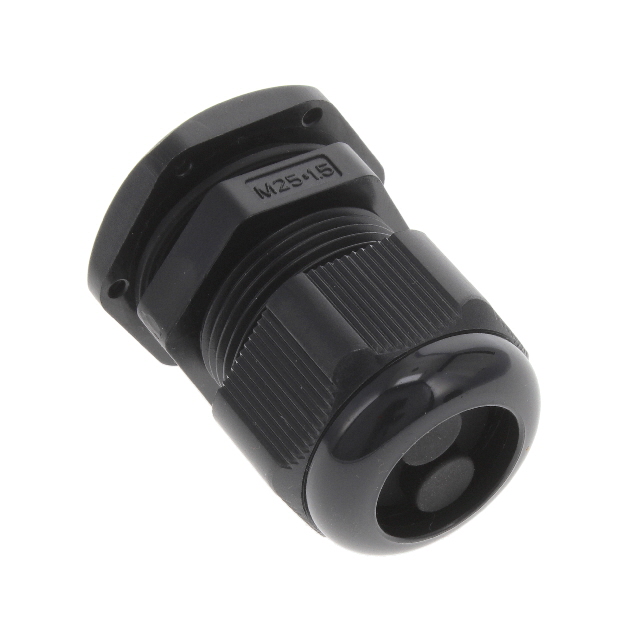

CGM25N24X2
ActiveSwitchcraft Inc.
CABLE GLAND 3-6MM M25 THERMOPL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CGM25N24X2
ActiveSwitchcraft Inc.
CABLE GLAND 3-6MM M25 THERMOPL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CGM25N24X2 | CGM25N Series |
|---|---|---|
| Color | Black | Black |
| Includes | O-Ring, Seal | O-Ring, Seal |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Material | Thermoplastic | Thermoplastic |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.236 in | 0.236 - 0.63 " |
| Outside Cable Diameter (Max) [Max] [diameter] | 6 mm | 6 - 16 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 3 mm | 3 - 10 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.118 in | 0.118 - 0.394 in |
| Thread Length | 7.87 mm | 7.87 - 14.99 mm |
| Thread Length | 0.31 in | 0.31 - 0.59 in |
| Thread Size | M25x1.5 | M25x1.5 |
| Type | Cable Gland | Cable Gland |
CGM25N Series
CABLE GLAND 10-16MM M25 THERMOPL
| Part | Ingress Protection | Color | Thread Length | Thread Length | Material | Type | Thread Size | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Includes | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. CGM25N63 | IP68 - Dust Tight, Waterproof | Black | 14.99 mm | 0.59 in | Thermoplastic | Cable Gland | M25x1.5 | 0.394 in | 10 mm | 0.63 " | 16 mm | O-Ring, Seal | 100 °C | -40 °C |
Switchcraft Inc. CGM25N24X2 | IP68 - Dust Tight, Waterproof | Black | 7.87 mm | 0.31 in | Thermoplastic | Cable Gland | M25x1.5 | 0.118 in | 3 mm | 0.236 in | 6 mm | O-Ring, Seal | 100 °C | -40 °C |
Switchcraft Inc. CGM25N24X3 | IP68 - Dust Tight, Waterproof | Black | 7.87 mm | 0.31 in | Thermoplastic | Cable Gland | M25x1.5 | 0.118 in | 3 mm | 0.236 in | 6 mm | O-Ring, Seal | 100 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 4.79 | |
| 200 | $ 4.57 | |||
| 300 | $ 4.42 | |||
| 500 | $ 4.27 | |||
| 1000 | $ 4.05 | |||
| 2500 | $ 3.99 | |||
Description
General part information
CGM25N Series
Cable Gland Thermoplastic M25x1.5 Black
