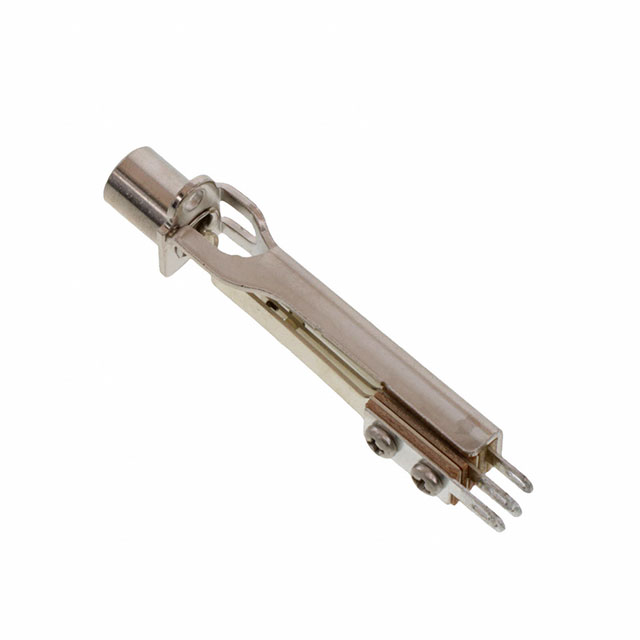

MT334BX

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	MT334BX

Actual Diameter [diameter]	6.43 mm
Actual Diameter [diameter]	0.253 "
Body Color	Silver
Body Material	Steel
Connector Type	Phone Jack
Contact Material	Palladium (Pd)
Contact Material - Plating [custom]	Gold
Features	Grounding Tab
Gender	Female
Internal Switch(s)	Two Switches
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	5
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

CONN JACK STEREO 6.35MM PNL MNT

Part	Internal Switch(s)	Signal Lines	Termination	Contact Material - Plating [custom]	Gender	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Shielding	Connector Type	Body Color	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]
Switchcraft Inc. MT334BX	Two Switches	Stereo	Solder Eyelet(s)	Gold	Female	Steel	3	5	Grounding Tab	Unshielded	Phone Jack	Silver	Palladium (Pd)	6.43 mm	0.253 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
