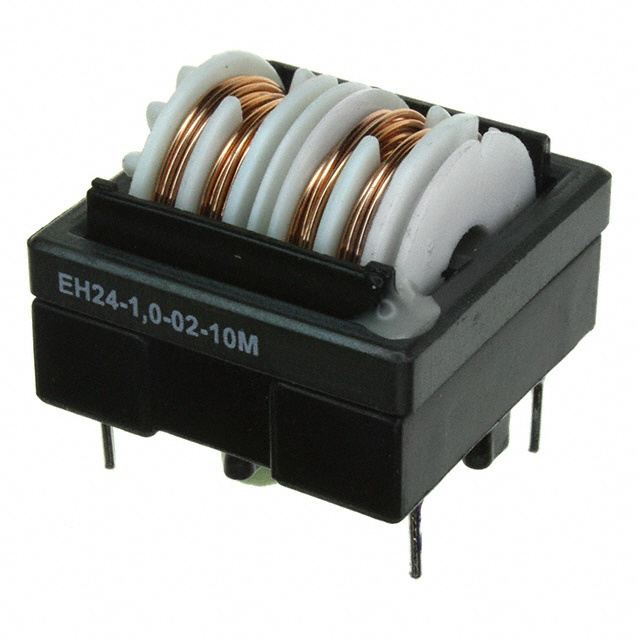

EH24-1.0-02-10M

Active

Schaffner EMC Inc.

CMC 10MH 1A 2LN TH

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

CMC 10MH 1A 2LN TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EH24-1.0-02-10M	EH24-1 Series

Current Rating (Max) [Max]	1 A	1 - 1.5 A
DC Resistance (DCR) (Max)	244 mOhm	116 - 244 mOhm
Filter Type	Power Line	Power Line
Height (Max)	0.827 in	0.827 in
Height (Max)	21 mm	21 mm
Inductance @ Frequency	10 mH	4.5 - 400 mH
Mounting Type	Through Hole	Through Hole
Number of Lines	2	2
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Package / Case	Horizontal	Horizontal
Package / Case	4 Lead	4 Lead
Size / Dimension [x]	24 mm	24 mm
Size / Dimension [x]	0.945 in	0.945 in
Size / Dimension [y]	0.945 in	0.945 in
Size / Dimension [y]	24 mm	24 mm
Voltage Rating - AC	250 V	250 V

CMC 10MH 1A 2LN TH

Part	Inductance @ Frequency	Filter Type	Operating Temperature [custom]	Voltage Rating - AC	Number of Lines	Package / Case	Package / Case	DC Resistance (DCR) (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max)	Height (Max)	Current Rating (Max) [Max]	Mounting Type
Schaffner EMC Inc. EH24-1.0-02-10M	10 mH	Power Line	-25 °C, 100 °C	250 V	2	Horizontal	4 Lead	244 mOhm	24 mm	0.945 in	24 mm	0.945 in	0.827 in	21 mm	1 A	Through Hole
Schaffner EMC Inc. EH24-1.5-02-4M5	4.5 mH, 400 Hz	Power Line	-25 °C, 100 °C	250 V	2	Horizontal	4 Lead	116 mOhm	24 mm	0.945 in	24 mm	0.945 in	0.827 in	21 mm	1.5 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 1.66

General part information

10 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 244mOhm (Typ)
