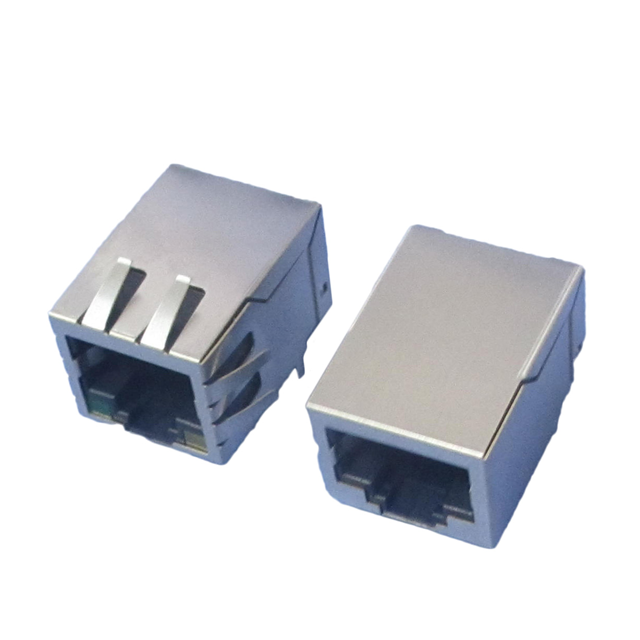

12F10EGYDSNW2NL

Active

Yuan Dean

CONN RJ45 JACK W/MAG

Search across all available documentation for this part.

Active

Yuan Dean

CONN RJ45 JACK W/MAG

Technical Specifications

Parameters and characteristics for this part

Specification	12F10EGYDSNW2NL

Applications	10 Base-T, AutoMDIX
Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Features	Solder Retention
Height Above Board	13.84 mm
Height Above Board	0.545 in
Housing Material	Polyamide (PA), Nylon, Glass Filled
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass, Nickel Coated
Shielding	Shielded
Tab Direction	Down
Termination	Solder

CONN RJ45 JACK W/MAG

Part	Orientation	LED Color	Connector Type	Contact Material	Tab Direction	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Termination	Shield Material	Contact Finish	Housing Material	Shielding	Number of Rows	Height Above Board	Height Above Board
Yuan Dean 12F10EGYDSNW2NL	90 °	Yellow - Green	Jack	Phosphor Bronze	Down	Through Hole	0.152 Ám	6 Áin	Solder Retention	1	70 °C	0 °C	10 Base-T, AutoMDIX	Solder	Brass, Nickel Coated	Gold	Polyamide (PA), Nylon, Glass Filled	Shielded	1	13.84 mm	0.545 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 13.75

General part information

1 Port JackThrough Hole 10 Base-T, AutoMDIX
