2HX-1500-2-YL-J
ActiveBRADY
SLEEVE, 1.5 IN DIA X 2 IN W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2HX-1500-2-YL-J
ActiveBRADY
SLEEVE, 1.5 IN DIA X 2 IN W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2HX-1500-2-YL-J | 2HX-1500 Series |
|---|---|---|
| - | - | |
| Color | Yellow | White, Yellow, Black |
| Label Size [diameter] | 36.8 mm, 19.1 mm | 19.1 - 36.8 mm |
| Label Size [diameter] | 1.45 ", 0.75 " | 0.75 - 1.45 " |
| Label Size [x] | 50.8 mm | 50.8 mm |
| Label Size [x] | 2 " | 2 " |
| Label Size [y] | 61.8 mm | 61.8 mm |
| Label Size [y] | 2.43 " | 2.43 " |
| Label Type | Heat Shrinkable | Heat Shrinkable |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
2HX-1500 Series
SLEEVE, 1.5 IN DIA X 2 IN W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Label Type | Color | Label Size [y] | Label Size [y] | Label Size [diameter] | Label Size [diameter] | Label Size [x] | Label Size [x] | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 2HX-1500-2-WT | -40 °C | 120 °C | Heat Shrinkable | White | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
BRADY 2HX-1500-2-YL-J | -40 °C | 120 °C | Heat Shrinkable | Yellow | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
BRADY 2HX-1500-2.3-YL | -40 °C | 120 °C | Heat Shrinkable | Yellow | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
BRADY 2HX-1500-2.3-WT | -40 °C | 120 °C | Heat Shrinkable | White | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
BRADY 2HX-1500-2-YL | -40 °C | 120 °C | Heat Shrinkable | Yellow | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
BRADY 2HX-1500-2-BK | -40 °C | 120 °C | Heat Shrinkable | Black | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
BRADY 2HX-1500-2-WT-J | |||||||||||
BRADY 2HX-1500-2-WT-2 | |||||||||||
BRADY 2HX-1500-2-YL-S | |||||||||||
BRADY 2HX-1500-2-WT-S | -40 °C | 120 °C | Heat Shrinkable | White | 61.8 mm | 2.43 " | 19.1 mm, 36.8 mm | 0.75 ", 1.45 " | 50.8 mm | 2 " | Polyolefin (PO) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2914.03 | |
Description
General part information
2HX-1500 Series

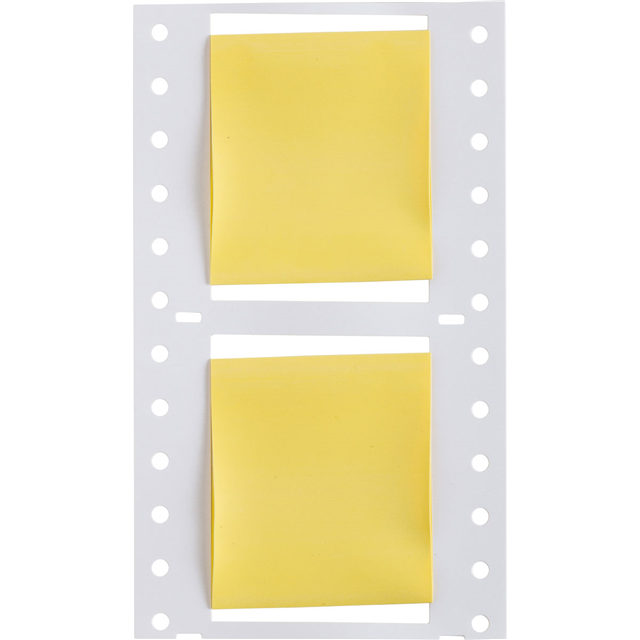

Yellow Heat Shrinkable Label 2.00" W x 2.43" H (50.8mm x 61.8mm); Cable O.D. 0.75" ~ 1.45" (19.1mm ~ 36.8mm)
