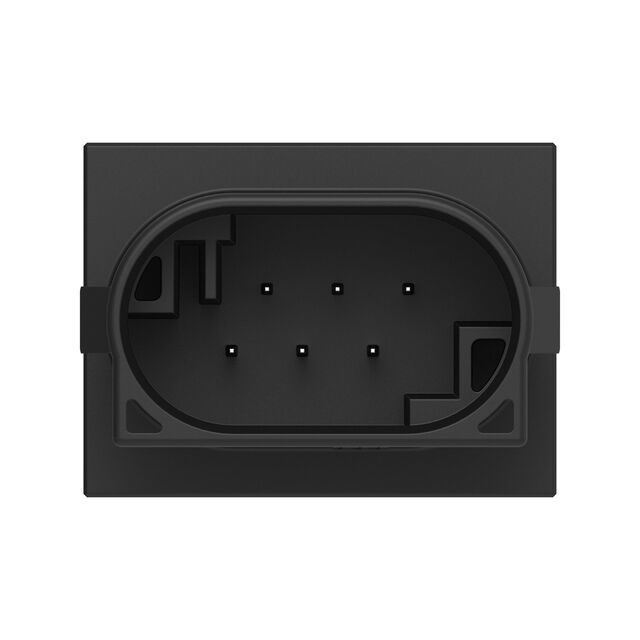

1241637-1
ActiveTE Connectivity AMP Connectors
MQS ST-LEIS90 6P
Deep-Dive with AI
Search across all available documentation for this part.
1241637-1
ActiveTE Connectivity AMP Connectors
MQS ST-LEIS90 6P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241637-1 |
|---|---|
| Connector Type | Header |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 20.09 mm |
| Insulation Height | 0.791 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.98 | |
| 10 | $ 2.70 | |||
| 25 | $ 2.56 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.38 | |||
| 250 | $ 2.08 | |||
| 500 | $ 2.02 | |||
| 1000 | $ 1.73 | |||
| 2500 | $ 1.61 | |||
1241637 Series
MQS ST-LEIS90 6P
| Part | Shrouding | Connector Type | Contact Shape | Pitch - Mating [x] | Pitch - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Height | Insulation Height | Fastening Type | Number of Positions | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Termination | Contact Type | Number of Rows | Material Flammability Rating | Insulation Material | Mounting Type | Contact Length - Post | Contact Length - Post | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241637-1 | Shrouded - 4 Wall | Header | Square | 0.079 in | 2 mm | -40 °C | 120 °C | Board to Cable/Wire | 20.09 mm | 0.791 in | Locking Ramp | 6 | 2.54 mm | 0.1 in | All | Solder | Male Pin | 2 | UL94 V-0 | Polybutylene Terephthalate (PBT), Glass Filled | Through Hole, Right Angle | 0.118 in | 3 mm | Black |
Description
General part information
1241637 Series
Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)
Documents
Technical documentation and resources
No documents available
