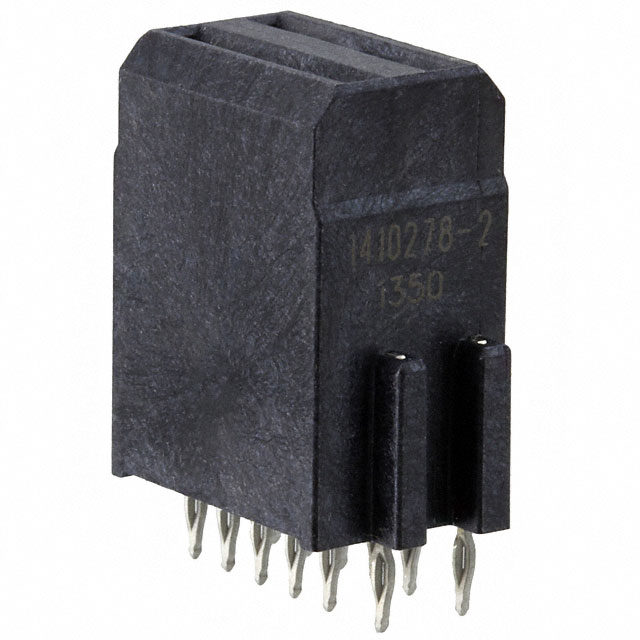

1410278-2

Active

TE Connectivity AMP Connectors

CONN RCPT POWER 2POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT POWER 2POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1410278-2

Color	Black
Connector Style	Power
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical	2 Power
Current Rating (Amps)	20 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit
Voltage Rating	250 VDC

CONN RCPT POWER 2POS PCB

Part	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions Loaded	Contact Finish	Contact Layout, Typical	Voltage Rating	Connector Usage	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions	Current Rating (Amps)	Mounting Type
TE Connectivity AMP Connectors 1410278-2	Receptacle, Female Blade Sockets	UL94 V-0	105 ░C	-55 °C	Black	All	Gold	2 Power	250 VDC	Backplane	Power	50 µin	1.27 µm	Press-Fit	2	20 A	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Connector Receptacle, Female Blade Sockets Through Hole Black Power
