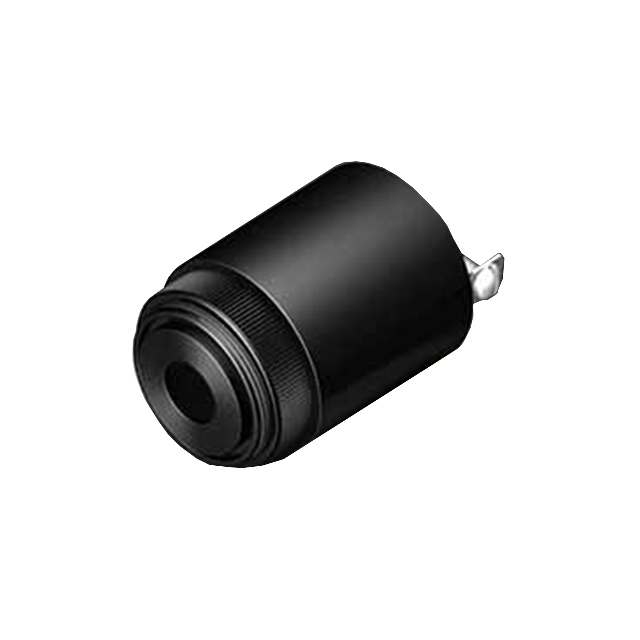

UT-19-230-S

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.81MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UT-19-230-S	UT-19 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	60 mA	60 mA
Current - Supply [Min]	40 mA	40 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.1 kHz	2.1 kHz
Height - Seated (Max) [Max] [z]	46.74 mm	46.74 mm
Height - Seated (Max) [Max] [z]	1.84 "	1.84 "
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Mode	Staccato Tone	Staccato Tone
Port Location	Top	Top
Size / Dimension [diameter]	1.41 in	1.41 in
Size / Dimension [diameter]	35.81 mm	35.81 mm
Sound Pressure Level (SPL)	109 dB	109 dB
Technology	Piezo	Piezo
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Quick Connect Tab - 0.250" (6.35mm), Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V	30 V
Voltage Range [Min]	20 VDC	20 VDC

BUZZER PIEZO 35.81MM PNL MNT

Part	Termination	Operating Mode	Voltage Range [Max]	Voltage Range [Min]	Technology	Current - Supply [Max]	Current - Supply [Min]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Port Location	Driver Circuitry	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ingress Protection	Sound Pressure Level (SPL)
Floyd Bell Inc UT-19-230-Q	Quick Connect Tab - 0.250" (6.35mm)	Staccato Tone	30 V	20 VDC	Piezo	60 mA	40 mA	2.1 kHz	46.74 mm	1.84 "	Top	Indicator, Internally Driven	UL, UR	1.41 in	35.81 mm	IP68 - Dust Tight, Waterproof	109 dB
Floyd Bell Inc UT-19-230-S	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Staccato Tone	30 V	20 VDC	Piezo	60 mA	40 mA	2.1 kHz	46.74 mm	1.84 "	Top	Indicator, Internally Driven	UL, UR	1.41 in	35.81 mm	IP68 - Dust Tight, Waterproof	109 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.48

General part information

Buzzers Indicator, Internally Driven Piezo 40 ~ 60mA 2.1kHz 109dB @ 30V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
