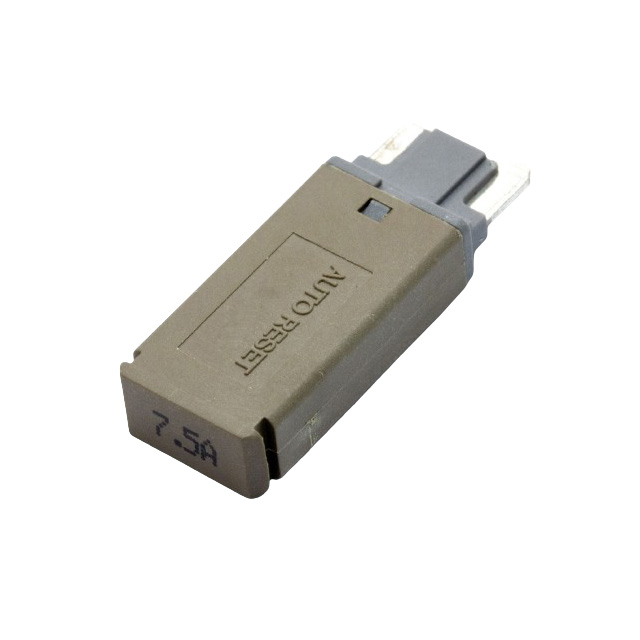

ACBP4-PS-7.5A
ActiveOptiFuse
MINI LP FOOTPR, CB-TYPE I, 7.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACBP4-PS-7.5A
ActiveOptiFuse
MINI LP FOOTPR, CB-TYPE I, 7.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACBP4-PS-7.5A | ACBP4 Series |
|---|---|---|
| Actuator Type | Automatic Reset | Automatic Reset |
| Approval Agency | SAE J553 | SAE J553 |
| Current Rating (Amps) | 7.5 A | 5 - 30 A |
| Illumination | None | None |
| Number of Poles | 1 | 1 |
| Voltage Rating - DC | 58 VDC | 14 - 58 V |
ACBP4 Series
OTHER INDUSTRIAL CONTROL PRODUCTS ROHS
| Part | Number of Poles | Voltage Rating - DC | Current Rating (Amps) | Approval Agency | Illumination | Actuator Type |
|---|---|---|---|---|---|---|
OptiFuse ACBP4-PM-20A | 1 | 14 V | 20 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PS-15A | 1 | 58 VDC | 15 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PM-25A | 1 | 14 V | 25 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PS-5A | 1 | 58 VDC | 5 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PM-10A | 1 | 14 V | 10 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PL-10A | 1 | 14 V | 10 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PS-20A | 1 | 58 VDC | 20 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PL-20A | 1 | 14 V | 20 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PM-7.5A | 1 | 14 V | 7.5 A | SAE J553 | None | Automatic Reset |
OptiFuse ACBP4-PM-30A | 1 | 14 V | 30 A | SAE J553 | None | Automatic Reset |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ACBP4 Series
Circuit Breaker 7.5A AC 58 V DC Automatic Reset
Documents
Technical documentation and resources
