HG2405RD-1-NM
ActivePasternack

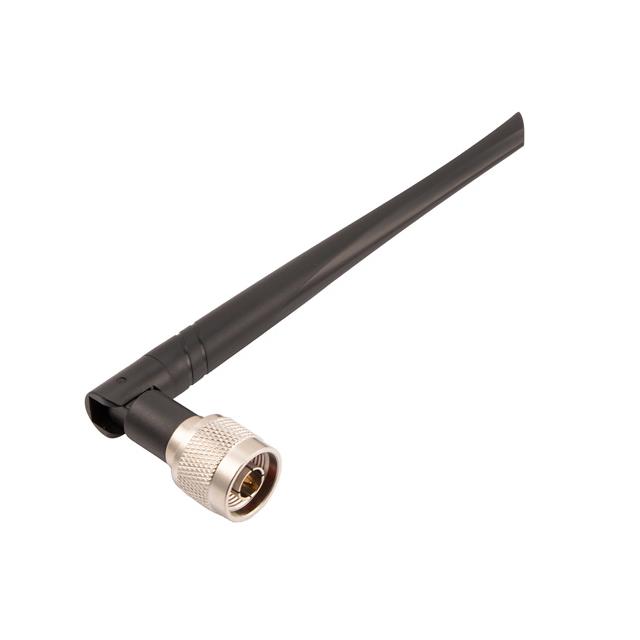

ANTRUBBER DUCK 2.4GHZ 5DB
HG2405RD-1-NM
ActivePasternack
ANTRUBBER DUCK 2.4GHZ 5DB
Description
General part information
HG2405RD-1-NM
RF ANTENNA 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN Whip, Right Angle N Type Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2405RD-1-NM |
|---|---|
| Antenna Type | Right Angle, Whip |
| Applications | WLAN, Bluetooth, ISM, Wi-Fi, 802.11b/g/n |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 4.52 dBi |
| Height (Max) | 8.189 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | Bluetooth, WiFi, General ISM |
| Termination Type | N Type Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
