Description
General part information

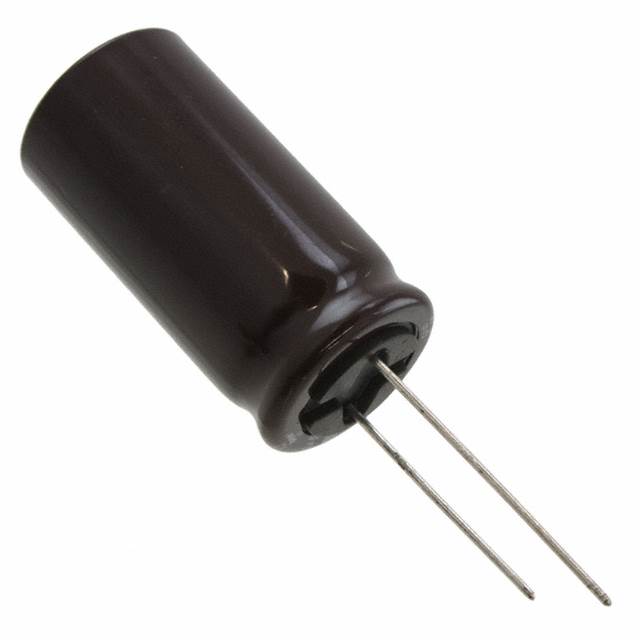

UPB2V121MHD
120 µF 350 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPB2V121MHD |
|---|---|
| Applications | General Purpose |
| Capacitance | 120 µF |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 0.295 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Ripple Current | 1.15 A, 575 mA |
| Size / Dimension Diameter | 0.709 in |
| Tolerance | 20 % |
| Voltage - Rated | 350 V |
