LR6 G07/BL2X2
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 6V AA
LR6 G07/BL2X2
ActiveFDK America, Inc.
BATTERY PACK ALKALINE 6V AA
Description
General part information
LR6 G07/BL2X2

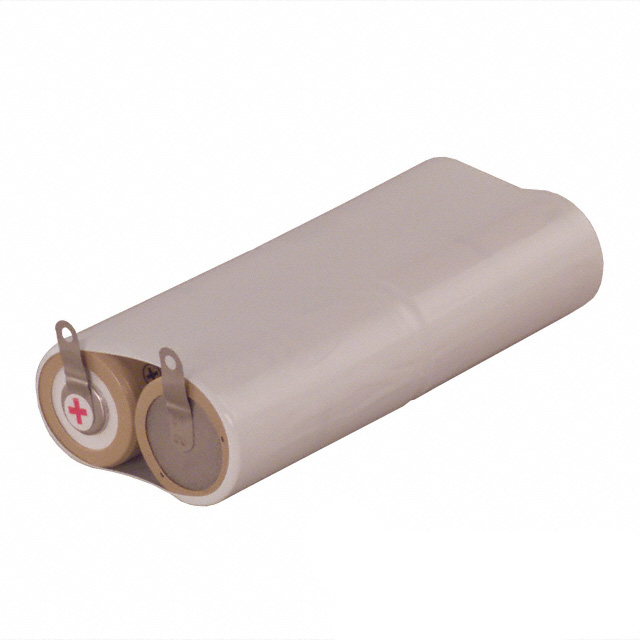

AA 6 V Alkaline Manganese Dioxide Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | LR6 G07/BL2X2 |
|---|---|
| Battery Cell Size | AA |
| Battery Chemistry | Alkaline Manganese Dioxide |
| Capacity (Charge) | 2.875 Ah |
| Number of Cells | 4 |
| Rechargeability | No |
| Size / Dimension Height | 3.98 in |
| Size / Dimension Length | 1.14 in |
| Size / Dimension Width | 0.57 in |
| Structure | Front to Back |
| Structure Cells | 2 |
| Structure Rows | 2 |
| Termination Style | Solder Tab |
| Voltage - Rated | 6 VDC |
| Weight | 96 g |
