1SNL407610R0000
ObsoleteTE Connectivity AMP Connectors

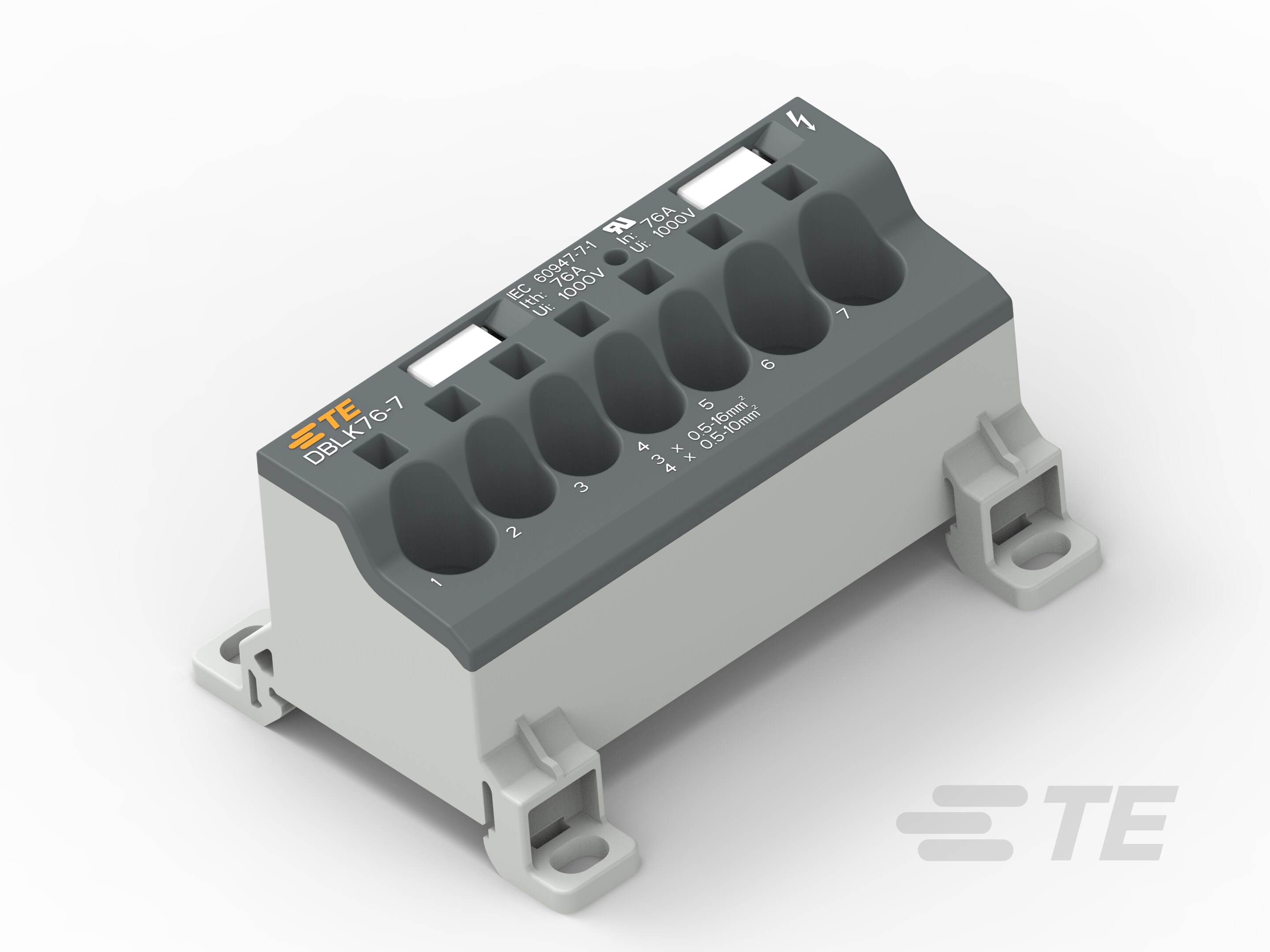

DBLK76-7
1SNL407610R0000
ObsoleteTE Connectivity AMP Connectors
DBLK76-7
Description
General part information
1SNL407610R0000
1 Pole, 76 A Current Rating (UL), 7 Position, DIN Rail, -55 – 110 °C [-67 – 230 °F], Power Distribution Blocks
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNL407610R0000 |
|---|---|
| Current Rating | 85 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Size (Max) | 16 AWG |
| Line Side Wire Size (Min) | 4 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 7 |
| Load Side Wire/Stud Size (AWG) (Max) | 16 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 4 AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1000 V |
