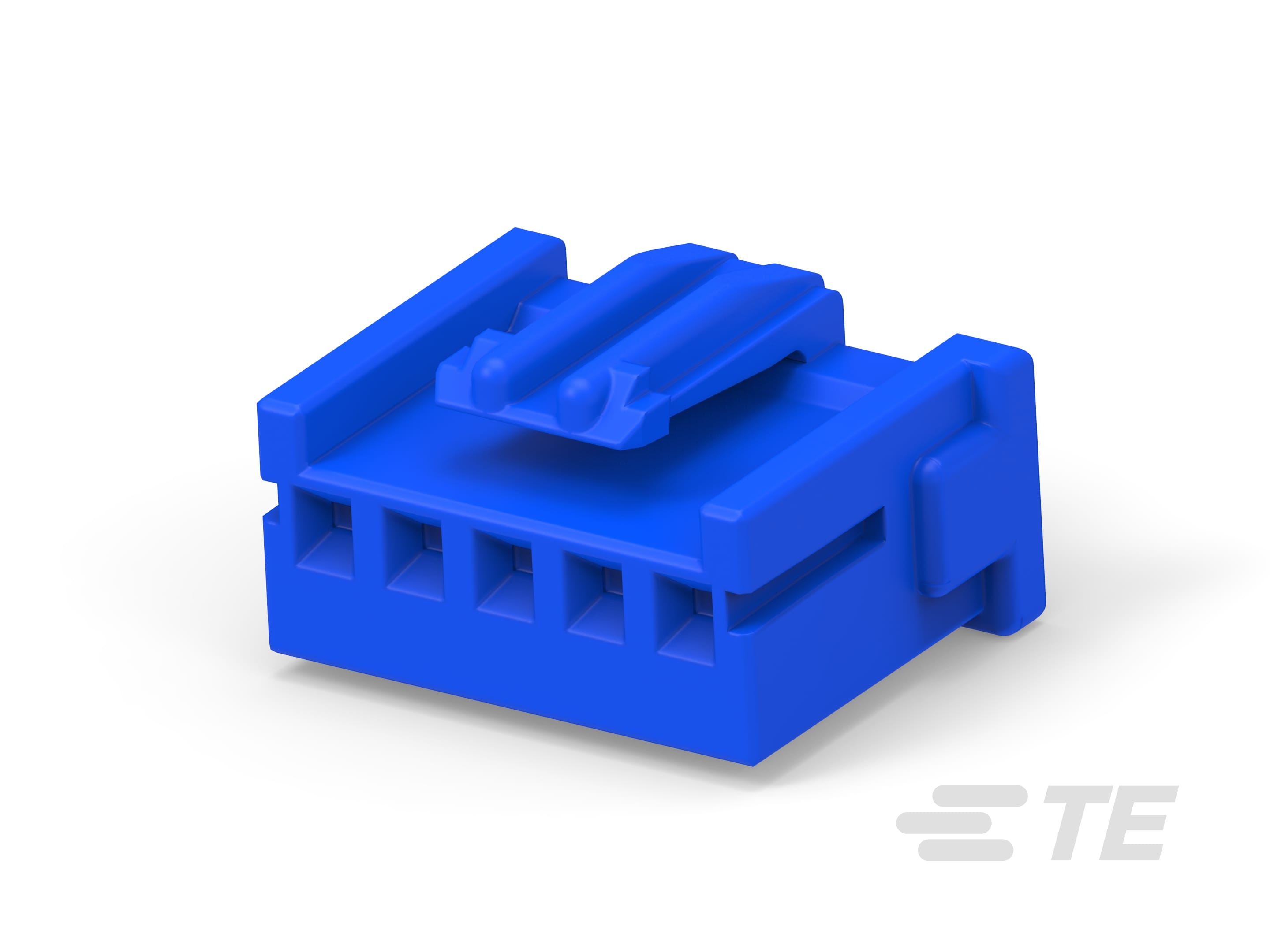

2.5 SIGNAL D/LOCK PLUG HSG 5P-917689-6

917689-6

Active
TE Connectivity AMP Connectors

2.5 SIGNAL D/LOCK PLUG HSG 5P

Find alt
2.5 SIGNAL D/LOCK PLUG HSG 5P-917689-6

917689-6

Active
TE Connectivity AMP Connectors

2.5 SIGNAL D/LOCK PLUG HSG 5P

Find alt

Description

General part information

AMP Signal Double Lock Series

5 Position, Plug, Housing, Crimp, Wire-to-Board, UL 94V-0, 2.5 mm [.098 in] Centerline, 1 Row, 250 VAC, Wire & Cable, Signal, AMP Signal Double Lock

Technical Specifications

Parameters and characteristics for this part

Specification917689-6
ColorBlue
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions5
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch0.098 in
