Description
General part information

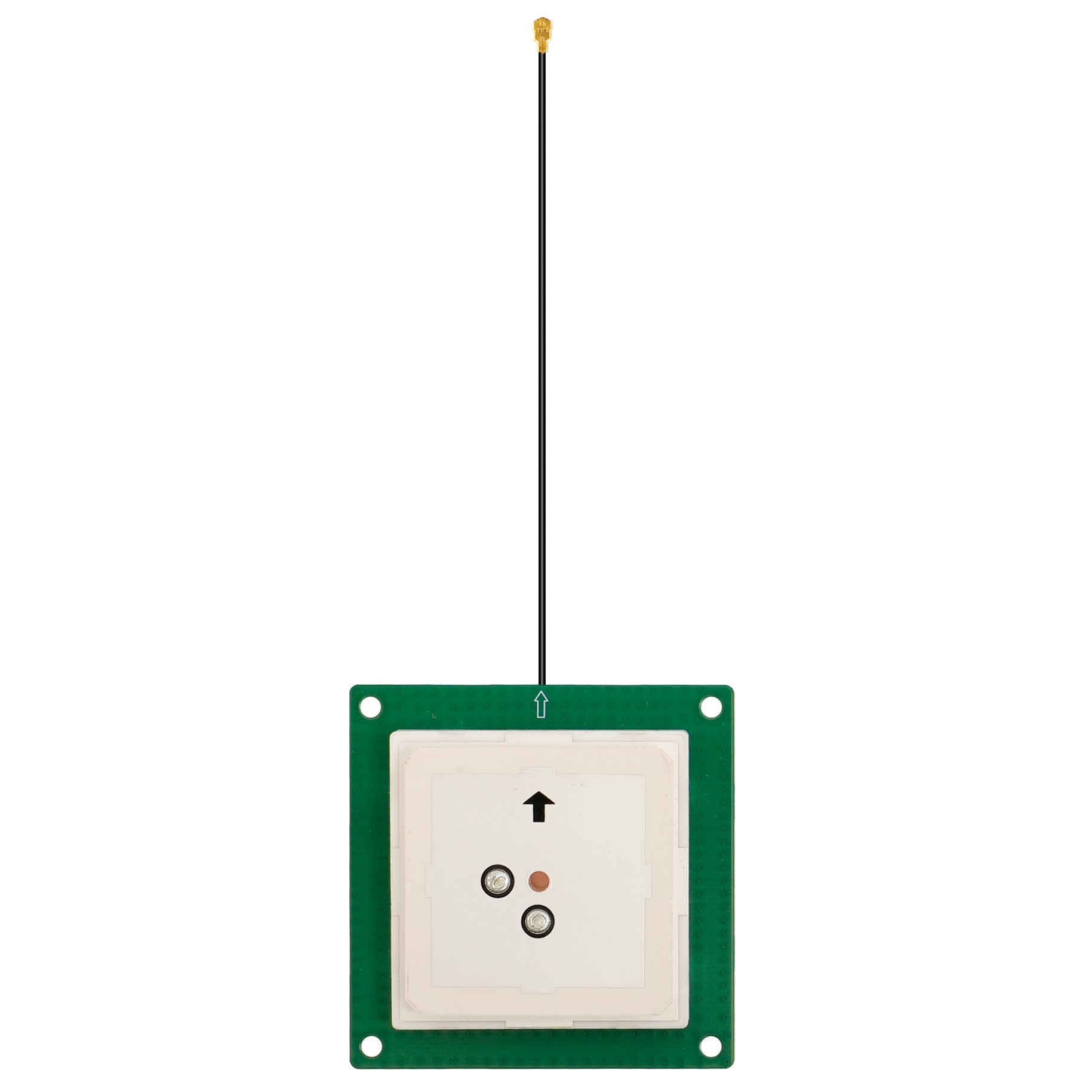

YFGA245E3CM
EMBEDDED ANTENNA
Technical Specifications
Parameters and characteristics for this part
| Specification | YFGA245E3CM |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GNSS |
| Features | Cable, 100mm, LNA |
| Frequency (Band) | 1.582 GHz |
| Frequency (Center) | 1.201 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.238 GHz |
| Frequency Range (Band 1) Minimum | 1.164 GHz |
| Frequency Range (Band 2) Maximum | 1.606 GHz |
| Frequency Range (Band 2) Minimum | 1.559 GHz |
| Gain | 3.6 dBi, -1 dBi |
| Height (Max) | 0.638 in |
| Mounting Type | Screw Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Termination | I-PEX MHF1 |
