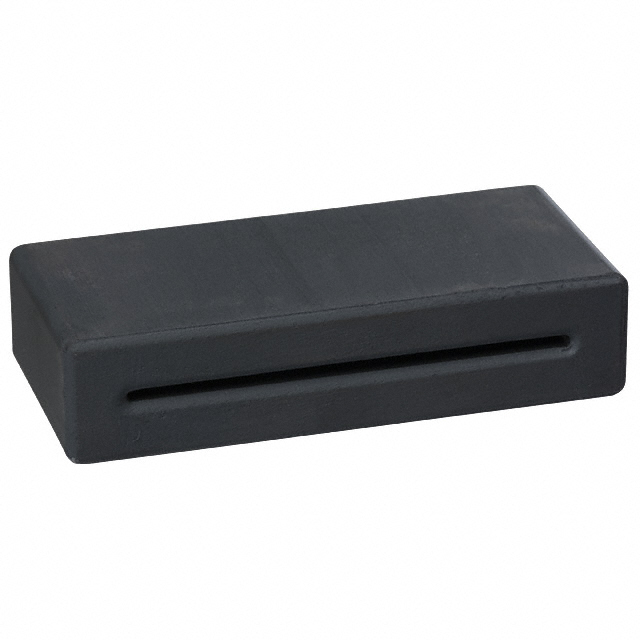

28R2170-000
ActiveLaird Technologies EMI
FERRITE CORE 280 OHM SOLID
28R2170-000
ActiveLaird Technologies EMI
FERRITE CORE 280 OHM SOLID
Description
General part information
28R2170-000
Solid Free Hanging Ferrite Core 280Ohm @ 100MHz ID 1.720" W x 0.050" H (43.69mm x 1.27mm) OD 2.170" W x 0.500" H (55.12mm x 12.70mm) Length 1.000" (25.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28R2170-000 |
|---|---|
| Design | Solid |
| Impedance | 280 Ohm |
| Inner Dimension Height | 0.05 in |
| Inner Dimension Width | 1.72 in |
| Length | 25.4 mm |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.5 in |
| Outer Dimension Width | 2.17 in |
| Type | Flat |
