2312118-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE HOUSING, RCPT, 18POS, 3A ROHS COMPLIANT: YES
2312118-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE HOUSING, RCPT, 18POS, 3A ROHS COMPLIANT: YES
Description
General part information
2312118-1

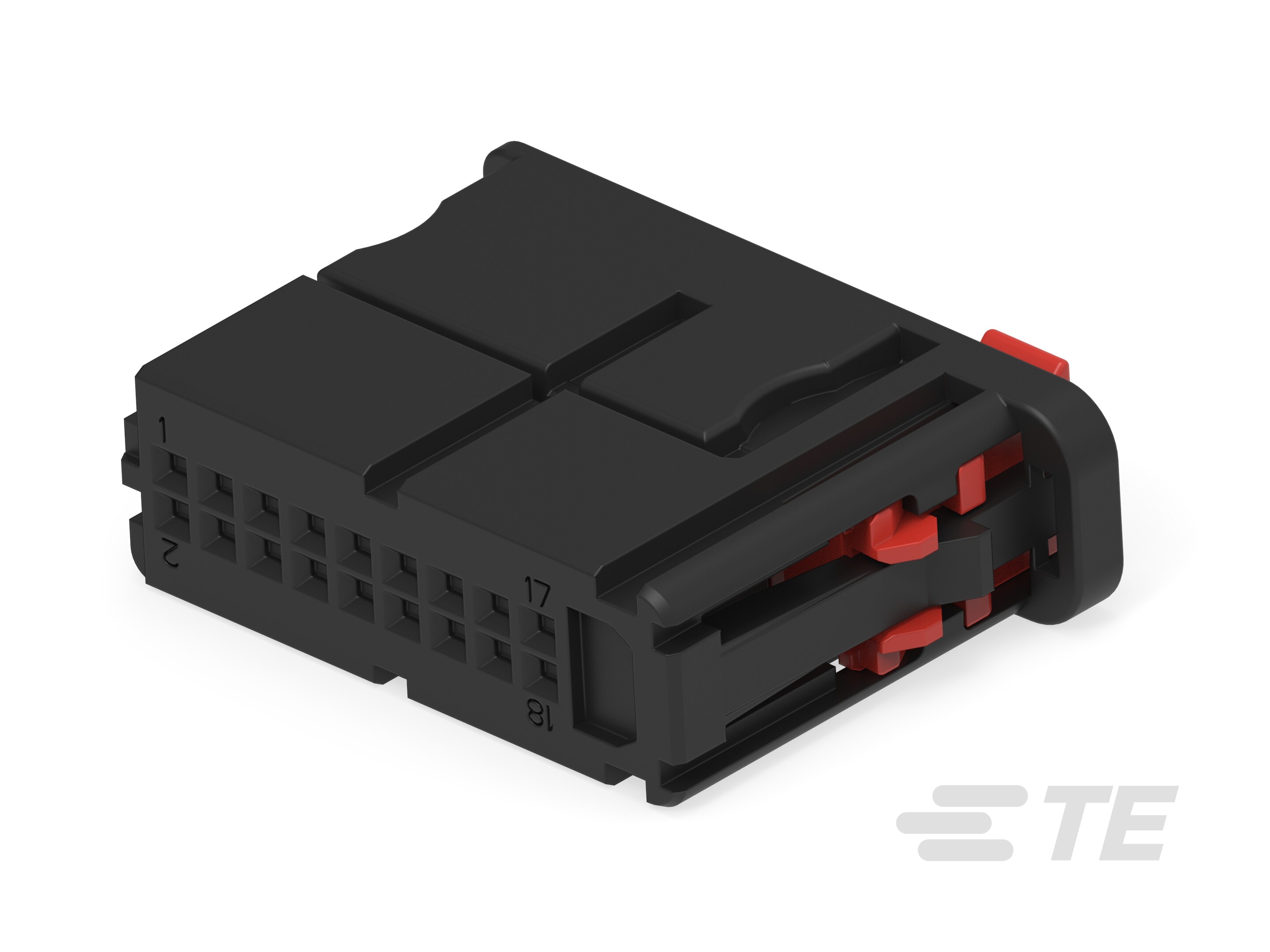

18 Position Housing, Receptacle, Cable-to-Board / Cable-to-Cable, 1.8 mm Centerline, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2312118-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Connector Position Assurance (CPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.071 in |
| Row Spacing | 0.059 in |
