TFX125.A

Active

TAOGLAS

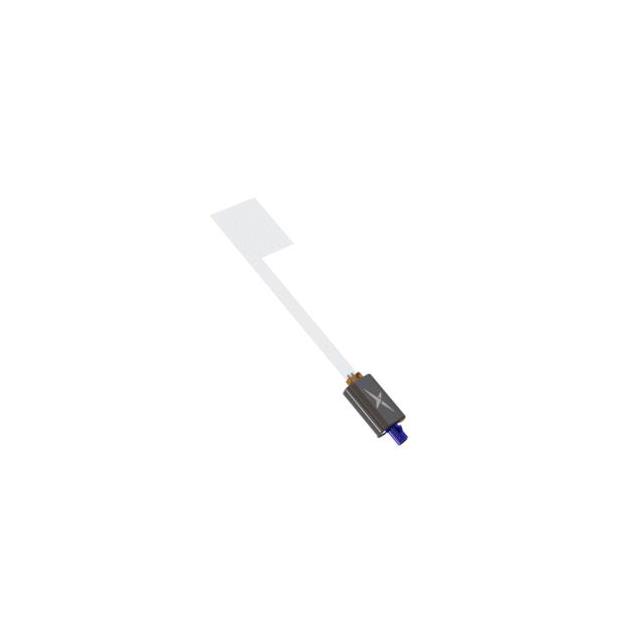

RF ANTENNA, 1.602GHZ, GNSS, -9.88DBI, 50 OHM, LINEAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 1.602GHZ, GNSS, -9.88DBI, 50 OHM, LINEAR

Technical Specifications

Parameters and characteristics for this part

Specification	TFX125.A

Antenna Type	Flat Patch
Applications	GLONASS, GNSS, GPS, Beidou, Galileo
Features	LNA
Features [x]	123.8 mm
Frequency (Center/Band)	1.575 GHz, 1.278 GHz, 1.602 GHz, 1.176 GHz, 1.561 GHz, 1.227 GHz
Frequency Group	UHF
Frequency Group [Max]	2 GHz
Frequency Group [Min]	1 GHz
Gain	-15.8 dBic, -7.26 dBic, -13.07 dBic, -18.69 dBic, -5.54 dBic
Height (Max) [Max]	0.5 mm
Height (Max) [Max]	0.02 in
Mounting Type	Connector Mount
Number of Bands	6
RF Family/Standard	Navigation
Termination	Fakra

RF ANTENNA, 1.602GHZ, GNSS, -9.88DBI, 50 OHM, LINEAR

Part	Height (Max) [Max]	Height (Max) [Max]	Gain	Features	Features [x]	Number of Bands	Applications	RF Family/Standard	Antenna Type	Frequency (Center/Band)	Termination	Mounting Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group
TAOGLAS TFX125.A	0.5 mm	0.02 in	-18.69 dBic, -15.8 dBic, -13.07 dBic, -7.26 dBic, -5.54 dBic	LNA	123.8 mm	6	Beidou, Galileo, GLONASS, GNSS, GPS	Navigation	Flat Patch	1.176 GHz, 1.227 GHz, 1.278 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz	Fakra	Connector Mount	2 GHz	1 GHz	UHF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Flat Patch Fakra Connector Mount
