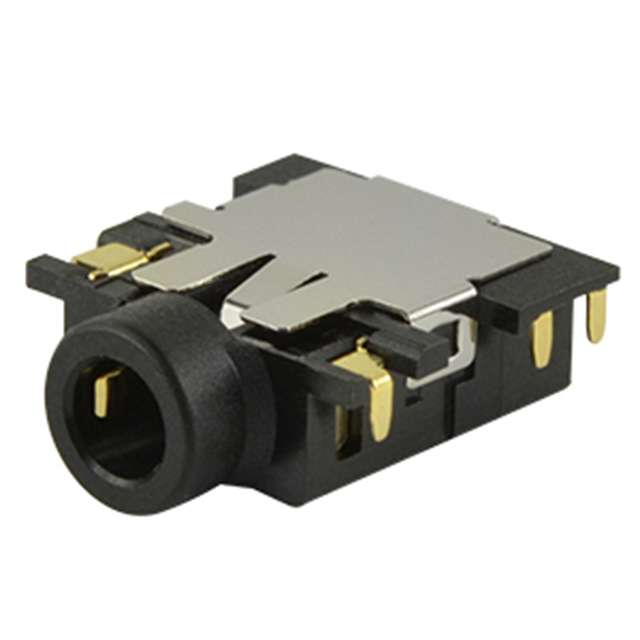

Specification	SJ2-35326D-SMT-TR

Actual Diameter	0.142 in
Body Color	Black
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating	Nickel, Gold
Current Rating	1 A
Gender	Female
Housing Material	Polyamide, Nylon 10T, PA10T
Industry Recognized Mating Diameter (Headphone - Mini Plug)	3.5 mm
Industry Recognized Mating Diameter (Headphone Options)	Mini Plug
Internal Switch(s)	Single Switch
Mating Length/Depth	0.551 in
Mounting Type	Right Angle, Board Cutout, Surface Mount
Number of Conductors	5 Conductors
Number of Contacts	6 Contacts
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Signal Lines	TRRRS
Signal Lines (Count)	5 Conductor
Termination	Solder
Voltage - Rated	12 VAC

SJ2-35 Series

Part	Mounting Type	Features	Connector Type	Number of Conductors	Number of Contacts	Actual Diameter	Gender	Termination	Signal Lines	Internal Switch(s)	Industry Recognized Mating Diameter (Headphone - Mini Plug)	Industry Recognized Mating Diameter (Headphone Options)	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Contact Material	Contact Material - Plating	Body Color	Voltage - Rated	Mating Length/Depth	Current Rating	Housing Material	Signal Lines (Count)	Internal Switch Count
Same Sky (Formerly CUI Devices) SJ2-35894A-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	4 Conductors	4 Contacts	0.142 in	Female	Solder	4 Conductor Stereo TRRS	Does Not Contain Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded
Same Sky (Formerly CUI Devices) SJ2-3583B-SMT-TR	Right Angle Surface Mount		Phone Jack	3 Conductors	4 Contacts	0.142 in	Female	Solder	3 Conductor Stereo TRS	Single Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Brass Copper Alloy	Silver	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide
Same Sky (Formerly CUI Devices) SJ2-35863B1-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	4 Conductors	5 Contacts	0.142 in	Female	Solder	4 Conductor Stereo TRRS	Single Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Copper Alloy	Silver	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide
Same Sky (Formerly CUI Devices) SJ2-3573A-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	3 Conductors	3 Contacts	0.142 in	Female	Solder	3 Conductor Stereo TRS	Does Not Contain Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Copper Alloy	Silver	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide
Same Sky (Formerly CUI Devices) SJ2-35364B-SMT-TR	Right Angle Surface Mount		Phone Jack	4 Conductors	5 Contacts	0.142 in	Female	Solder	4 Conductor Stereo TRRS	Single Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Copper Alloy	Silver	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide
Same Sky (Formerly CUI Devices) SJ2-3544A-SMT-TR	Right Angle Surface Mount		Phone Jack	5 Conductors	5 Contacts	0.142 in	Female	Solder	TRRRS	Does Not Contain Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Copper Alloy	Gold	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide	5 Conductor
Same Sky (Formerly CUI Devices) SJ2-3514A-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	4 Conductors	4 Contacts	0.142 in	Female	Solder	4 Conductor Stereo TRRS	Does Not Contain Switch	3.5 mm	Mini Plug	85 °C	-25 °C
Same Sky (Formerly CUI Devices) SJ2-35983D-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	3 Conductors	5 Contacts	0.142 in	Female	Solder	3 Conductor Stereo TRS		3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Brass Copper Alloy	Gold	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide		2 count
Same Sky (Formerly CUI Devices) SJ2-3594A-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	4 Conductors	4 Contacts	0.142 in	Female	Solder	4 Conductor Stereo TRRS	Does Not Contain Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded	Copper Alloy	Copper Alloy	Black	12 VAC	0.551 in	1 A	Nylon 10T PA10T Polyamide
Same Sky (Formerly CUI Devices) SJ2-35894B-SMT-TR	Right Angle Surface Mount	Board Guide	Phone Jack	4 Conductors	5 Contacts	0.142 in	Female	Solder	4 Conductor Stereo TRRS	Single Switch	3.5 mm	Mini Plug	85 °C	-25 °C	Unshielded
